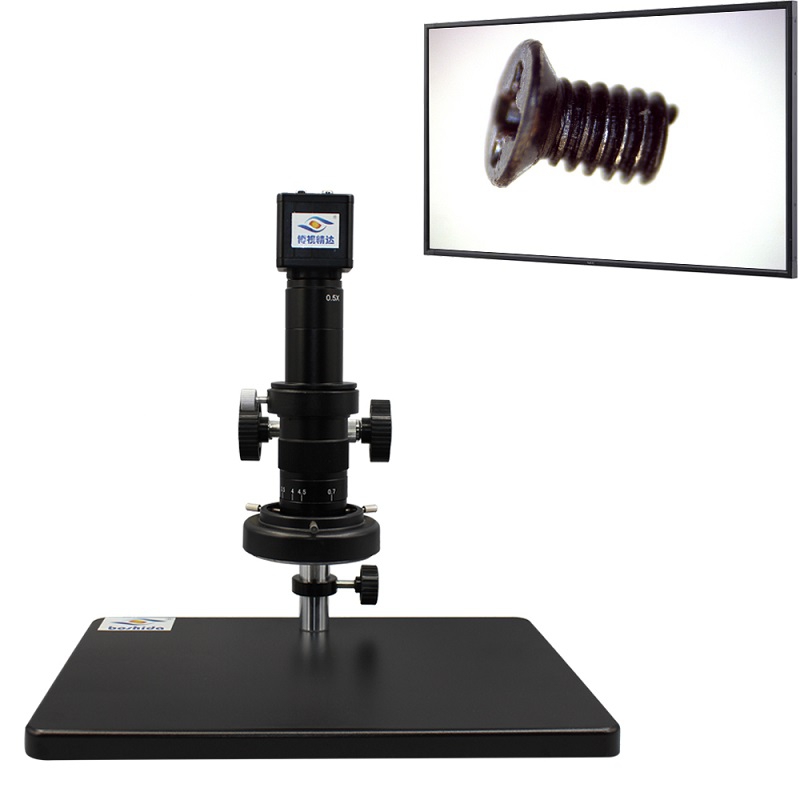

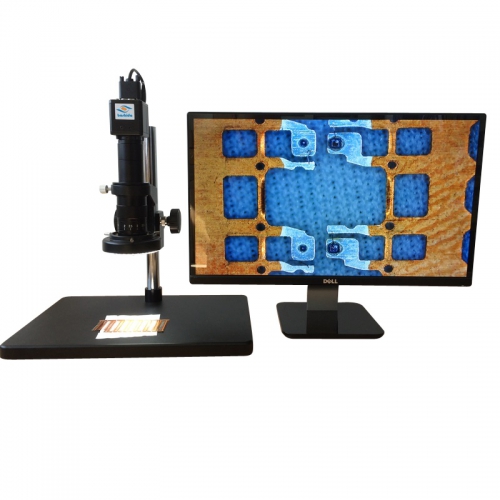

V200 serial inspection Video Microscope
▲ Standard Magnification: 14 -180X
▲ Resolution/Pixels: 2MP
▲ Camera port: VGA
▲ Illumination: Ring LED light
▲ Cetificate: CE, Rohs
Product Detail
※Features:
▲ V200 serial microscope is economic video microscope with VGA camera.
▲ V200 serial microscope is economic video microscope with VGA camera.
▲ It can be connected to a display screen directly.
▲ It is compeytent for detecting PCB,small metal parts, plastic, coins,etc.
▲ For more application information, please contact us or view SOLUTION.
※
| Model | V200-A01 |
| Standard Magnification | 14-180X |
| Function | Living image, cross line. |
| Lens | Main len: 0.7-4.5X. Optional auxiliary lens: 0.5X, 2X. |
| Resolution/Pixels | 2 mega pixels |
| Field range | 2-35mm |
| Focusing Moving distance | 65mm |
| Camera | VGA camera. Sony 1/3 inch CMOS color sensor. Frame rate: 45fps. Camera settings by bottons for white balance, exposure time, contrast, RGB, etc.. |
| Stage | 380*260mm. |
| Illumination | Hight light LED ring light, brightness adjustable. |
| Optional part | ▲Flexiable LED ring light ▲Auxiliary lens ▲Main lens ▲Boom stand ▲10-22 inch monitor. |
| Power supply | AC100-240V, 50/60Hz. |
