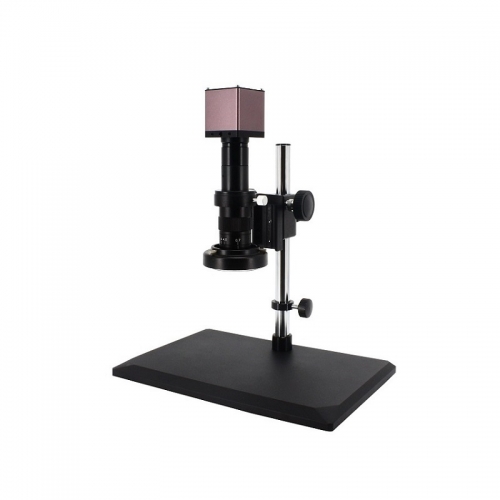

HD2000 serial HDMI digital measurement Microscope
▲ Magnification: 14 -180X
▲ Lens: 0.7-4.5X
▲ Lens: 0.7-4.5X
▲ 2MP, 1920*1080P
▲ Camera port: HDMI
▲ Memory: 256MP~32G
▲ Capture Image, measure
▲ Memory: 256MP~32G
▲ Capture Image, measure
Product Detail
※Features:

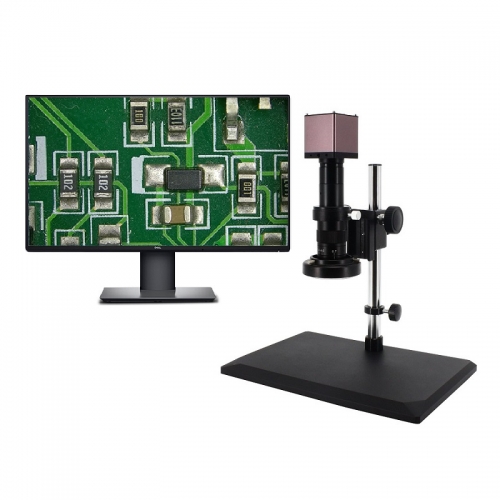

▲ HD2000 serial microscope is high quality video microscope with HDMI port. It can be connected to a display screen directly.
▲ The lastest color deal method and edge enhancement technology make the image fidelity and delicate, sharp and stereo.
▲ With high definition image, it is fit for high precision metal hardware, plastic, electronic products, etc.
▲ It can capture image, measure.
▲ It can capture image, measure.
▲ For more application information, please contact us or view SOLUTION.
※Specifications:| Model | HD2000-A01 |
| Standard Magnification | 14-180X |
| Function | Living image, capture image, measure. |
| Lens | Main len: 0.7-4.5X. Optional auxiliary lens: 0.5X, 2X. |
| Resolution/Pixels | 2 mega pixels, 1920*1080P |
| Field range | 2-35mm |
| Moving distance | 65mm |
| Camera | HDMI camera. Sony 1/2 inch CMOS color sensor. Frame rate: 60fps. Camera settings by USB mouse for white balance, exposure time, contrast, RGB, etc.. |
| Measurement | Length, distance from point to line, distance between 2 lines, diameterand radius of circle, center of a circle to a line, center of a circle to a point, length of a arc, circumference of a cicle, angle, radian, distance of centers of circles, rectangle square and perimeter, primeter and square of elipse, etc.. |
| Memory | USB flash didk. |
| Stage | 380*260mm. |
| Illumination | Hight light LED ring light, brightness adjustable. |
| Optional part | ▲Flexiable LED ring light ▲Auxiliary lens ▲Main lens ▲Boom stand ▲12-32 inch monitor. |
| Power supply | AC100-240V, 50/60Hz. |
