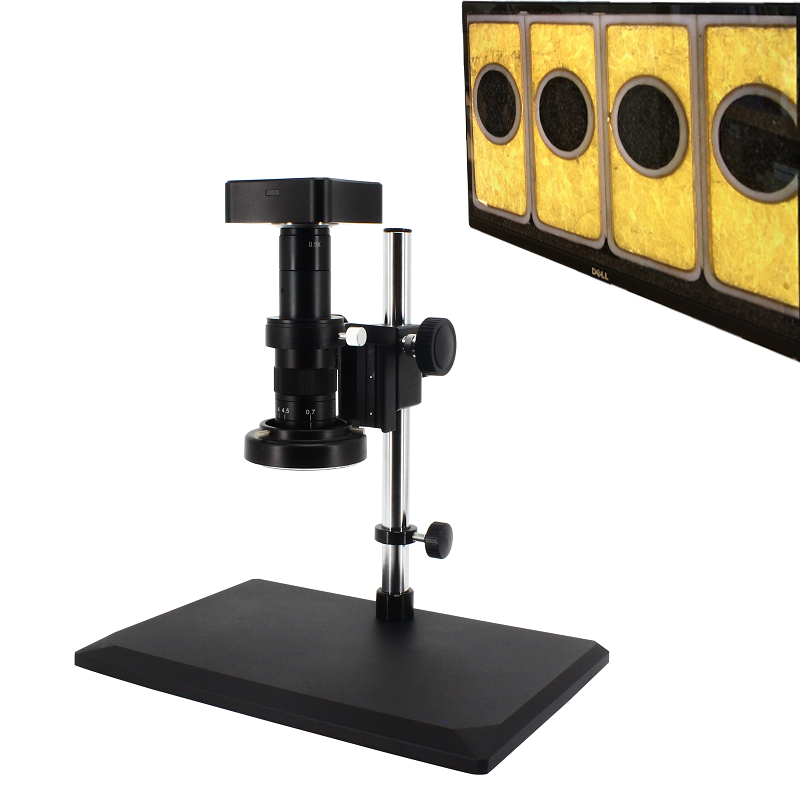

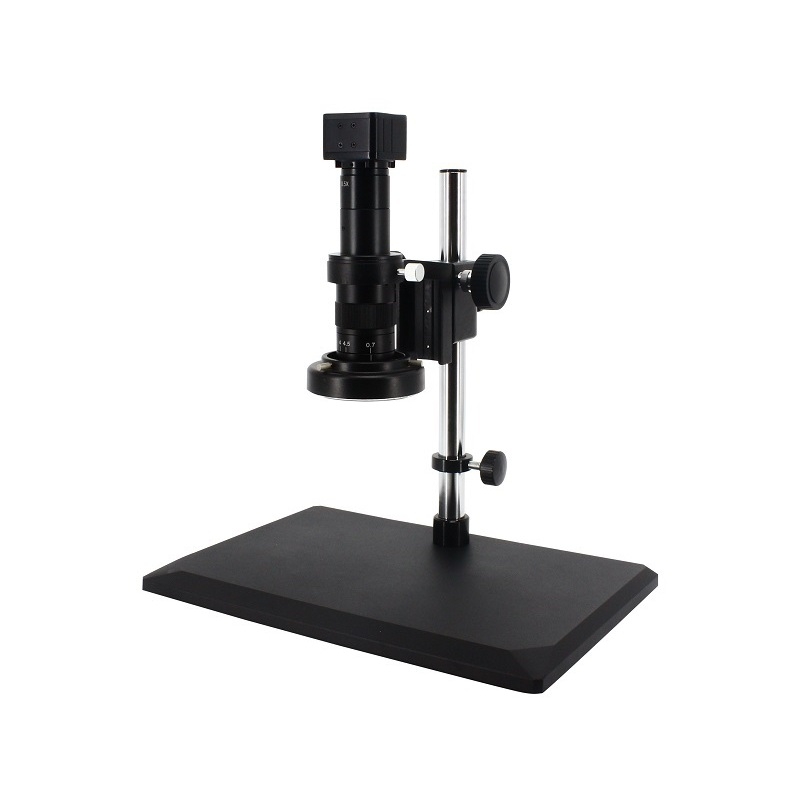

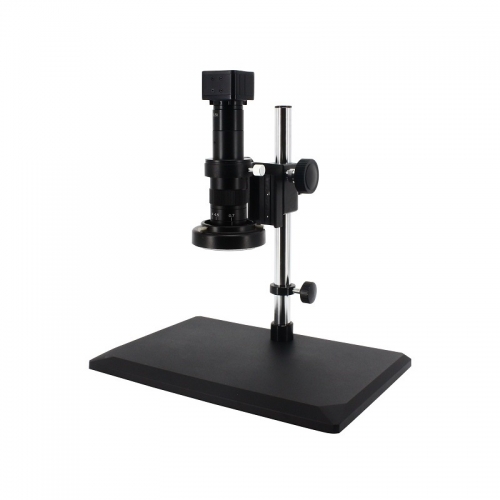

HC630 serial digital measurement Video Microscope
▲ Magnification: 14 -180X
▲ Lens: 0.7-4.5X
▲ 6.3MP, 3072*2048
▲ Camera port: USB
▲ Image capture, video capture, Measurement
▲ Cetificate: CE, Rohs
Product Detail
※Features:
▲ HC630 serial video microscope mesurement microscope with USB3.0 port can connect to computer.
▲ With a measurement software it can measure the image within view field.
▲ For more application information, please contact us or view SOLUTION.
※Specifications:
| Model | HC630-A01 |
| Standard Magnification | 14X-180X |
| Function | Living image, capture image, record video, measurement. |
| Lens | Main len: 0.7-4.5X. Optional auxiliary lens: 0.5X, 2X. |
| Resolution/Pixels | 6.3 mega pixels, 3072*2048. |
| Field range | 2-35mm. |
| Focusing Moving distance | 65mm. |
| Camera | USB3.0 camera. Sony 1/2 inch CMOS color sensor. Max Frame rate 35fps. Camera setting and control by software on computer. |
| Software | ▲Taking photo, recording video, measurement. ▲Control of all camera functions. ▲Automatic exposure/Manual exposure/area exposure. ▲Automatic continous white balance/One touch white balance/area white balance. ▲Measurement: Circle: radius, circumference, squre. Distance from center of a circle to a line, to a point, to another center of a circle. Arc: radius, arc length, radian. Rectangle: length, width, square and perimeter. Polygon: primeter and square. Elipse: primeter and square; Length, angle. ▲For win7/8/10(64 bit). |
| stage | 380*260mm. |
| Illumination | Hight light LED ring light, brightness adjustable. |
| Optional part | ▲Flexiable LED ring light . ▲Auxiliary lens, main lens . ▲Boom stand |
| Power supply | AC100-240V, 50/60Hz. |
