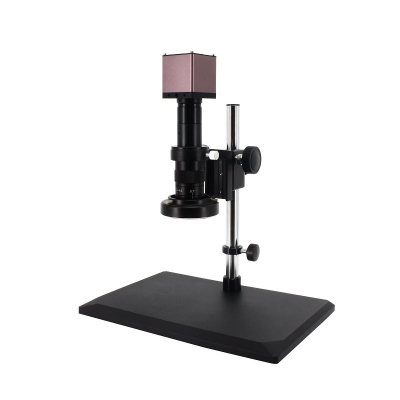

HD3000 serial HDMI auto-focusing digital Video Microscope
▲ Magnification: 14 -180X
▲ Lens: 0.7-4.5X
▲ 2MP, 1920*1080P
▲ Camera port: HDMI
▲ Functions: Auto-fousing
▲ Cetificate: CE, Rohs
Product Detail
※Features:
▲ HD3000 serial video microscope is auto-fousing microscope with HDMI Camera.
▲ The system will automatically focus to make the whole image clear.
▲ Click focusing: We can use the mouse to select a part or component, the image will focus on it. This function is useful when the sample/specimen is rugged.
▲ When the auto-fousing function is closed, it can do mesaurement.
▲ It is competent for applications which is hard to focus manually, such as large size PCB or other large size samples.
▲ For more application information, please contact us or view SOLUTION.
▲ Click focusing: We can use the mouse to select a part or component, the image will focus on it. This function is useful when the sample/specimen is rugged.
▲ When the auto-fousing function is closed, it can do mesaurement.
▲ It is competent for applications which is hard to focus manually, such as large size PCB or other large size samples.
▲ For more application information, please contact us or view SOLUTION.
※Specifications:
| Model | HD3000-A01 |
| Standard Magnification | 14-180X |
| Function | Living image, capture image, measurement. Auto focusing. |
| Lens | Main len: 0.7-4.5X. Optional auxiliary lens: 0.5X, 2X. |
| Resolution/Pixels | 2 mega pixels, 1920*1080P. |
| Field range | 2-35mm |
| Moving distance | 65mm |
| Camera | HDMI camera. Sony 1/2 inch CMOS color sensor. Frame rate: 60fps. Camera settings by USB mouse for white balance, exposure time, contrast, RGB, etc.. |
| Memory | USB Flash disk. |
| Stage | 380*260mm |
| Illumination | Hight light LED ring light, brightness adjustable. |
| Optional part | ▲Flexiable LED ring light ▲Auxiliary lens ▲Main lens ▲Boom stand ▲19-22 inch monitor. |
| Power supply | AC100-240V, 50/60Hz. |
