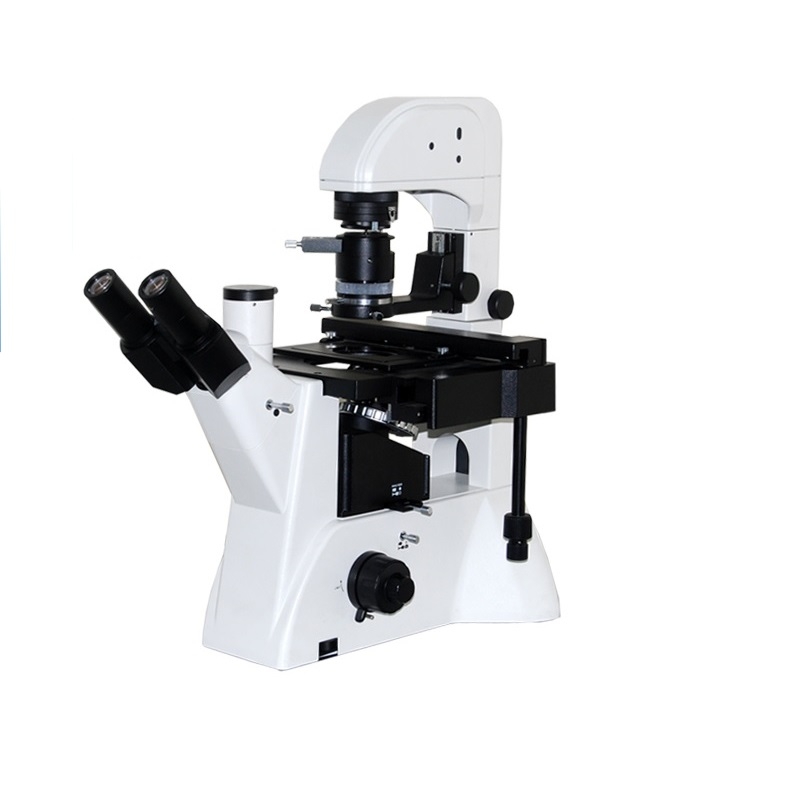

BD-S3DIC Inverted biological microscope With DIC
▲ Infinity achromatic optical system.
▲ Bright field, DIC.
▲ Bright field, DIC.

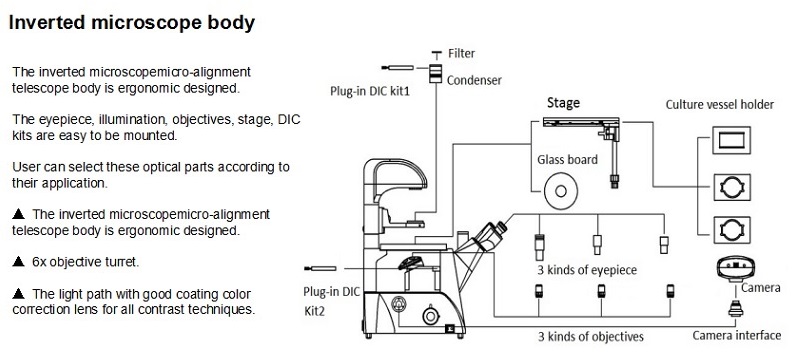

▲ Inverted biological microscope.
▲ Trinocular/Binocular.
▲ Trinocular/Binocular.
▲ Long working distance objectives.
Product Detail
BD-S3DIC Inverted biological microscope With DIC
※Features:

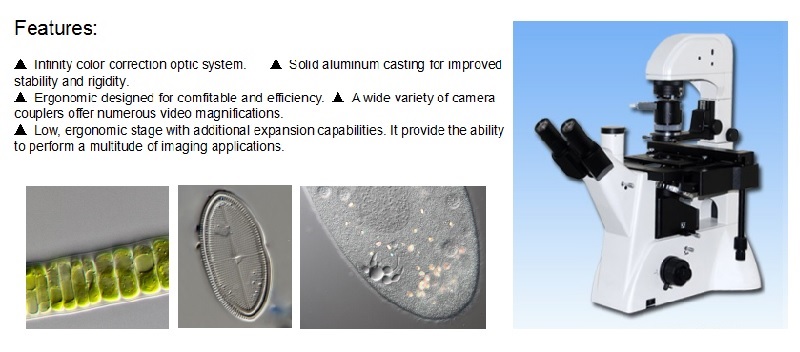

The BD-S3DIC inverted biological microscope sets new standards in advanced imaging with its compact frame, outstanding optical performance and exceptional flexibility.
※Features:
Cell culture is a important in life science and biological research.
To observe cell in culture vessel a inverted biological is needed.
To check and observe the cell culturing and splitting status, a inverted microscope is needed.

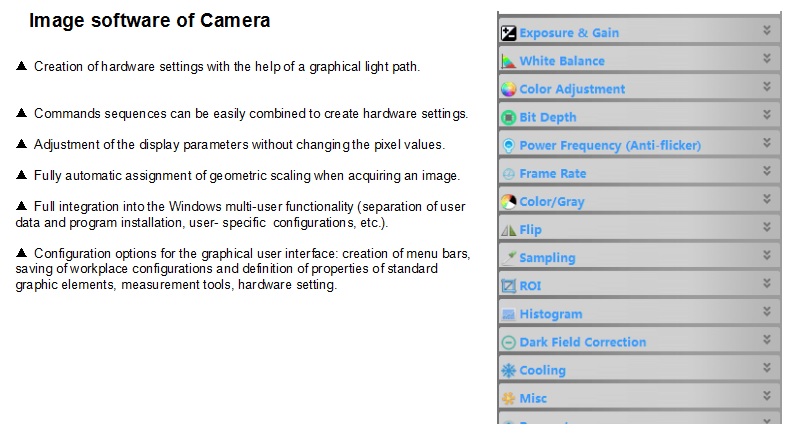

With a camera researcher can take a picture or record a video and save it in a computer for analysis.
To observe cell in culture vessel a inverted biological is needed.
To check and observe the cell culturing and splitting status, a inverted microscope is needed.
With a camera researcher can take a picture or record a video and save it in a computer for analysis.
For more application, please contact us.
| Model | BD-S3DIC |
| Optical system | Infinity Plan Achromatic optical system. |
| Observation | Bright field, DIC. |

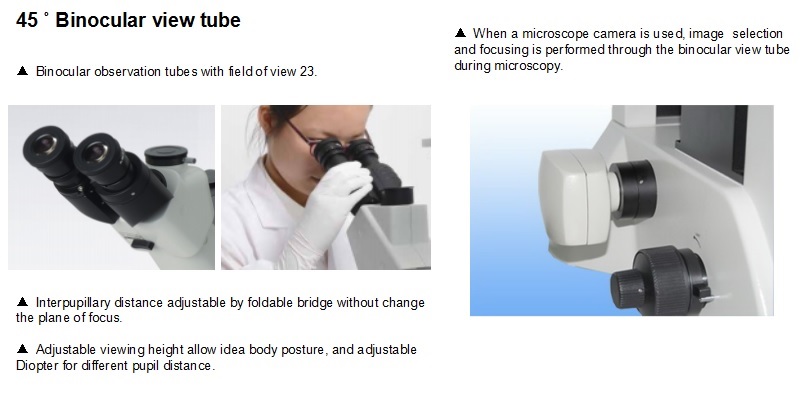

| View Tube | Trinocular phototube tube, 30 ° inclining. IPD adjustment: 54mm ~ 75mm, Diopter adjustment: ± 5 |

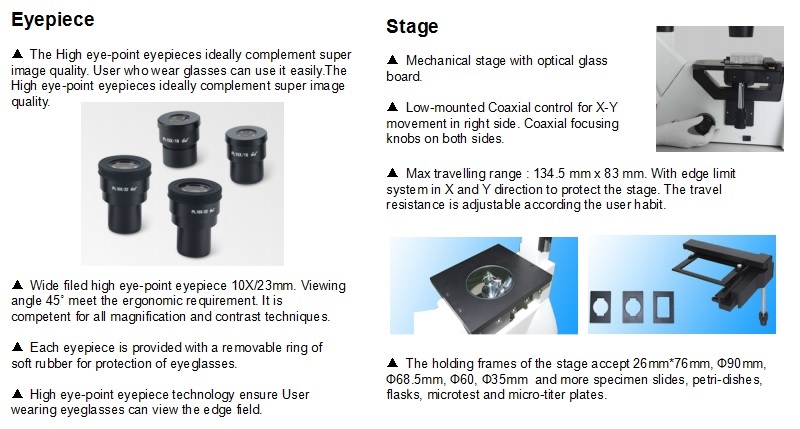

| Eyepiece | WF10X/22mm. |
| Nosepiece | 5-position. |

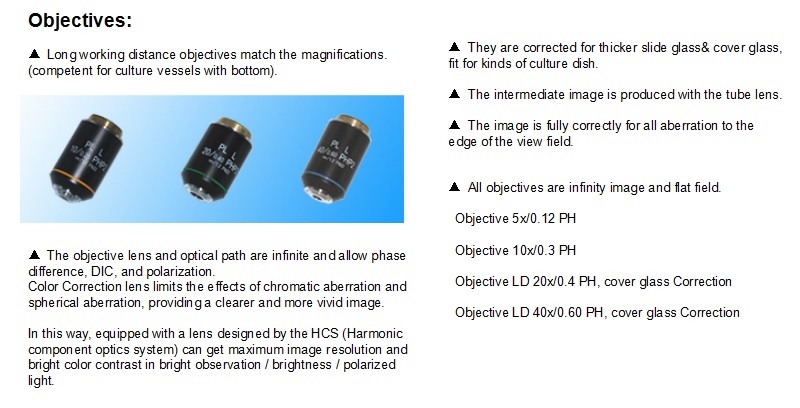

| Objective | Long working distance Infinity Plan Achromatic objective: 5X, 10X, 20X, 40X. |

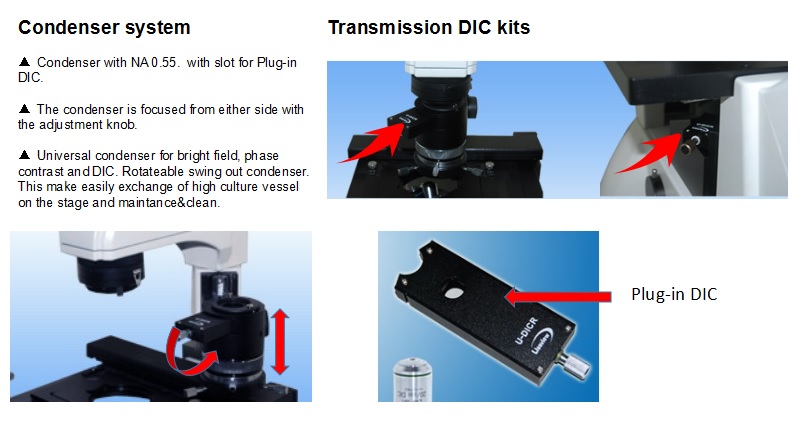

| Condenser | Universal condenser for bright field, DIC. N.A. 0.3. |
| Stage | Flex M Frame Stage with Inserts for Specimens, Slides, Chambers and Petri Dishes. Double layer mechanical stage. Stage size:224× 208mm, moving range: 80mmx135mm. |

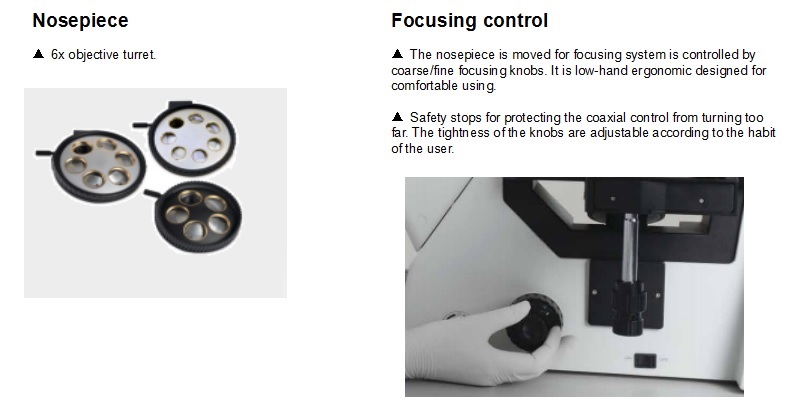

| Focusing system | Coarse and fine focusing system. It is low-hand ergonomic designed for comfortable using. Safety stops for protecting the coaxial control from turning too far. The tightness of the knobs are adjustable according to the habit of the user. |

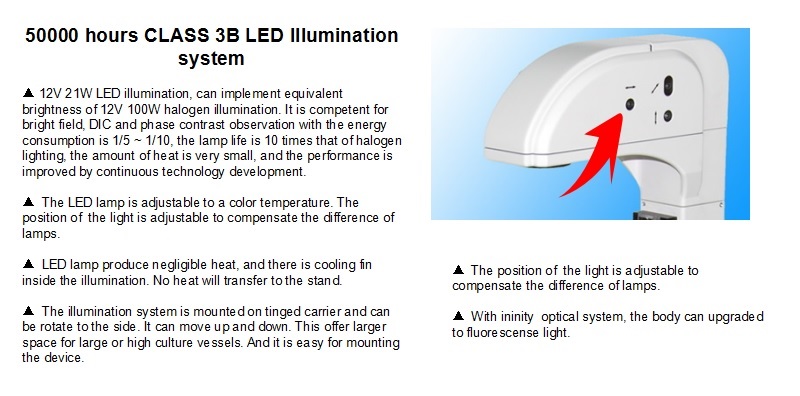

| Illumination | 5W LED illumination. Brightness adjustable. With built-in Heat reflecting filter. |
| Camera adapter | 0.5X or 1X. |

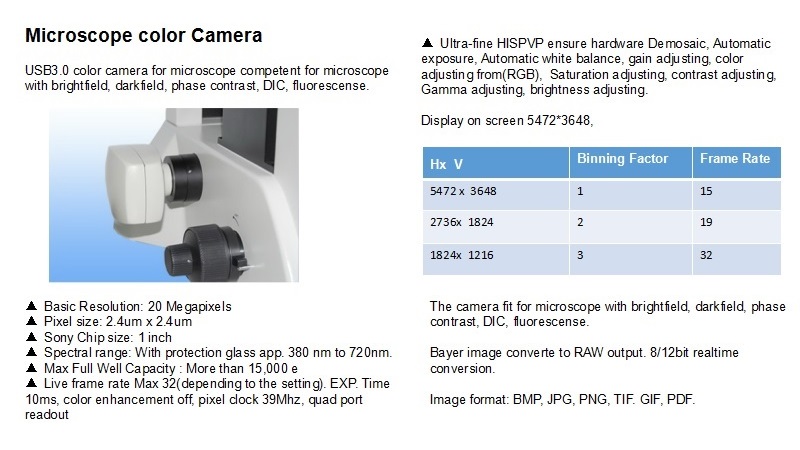

| Camera | Optional. |
| Power supply | AC100-240V, 50/60Hz |
