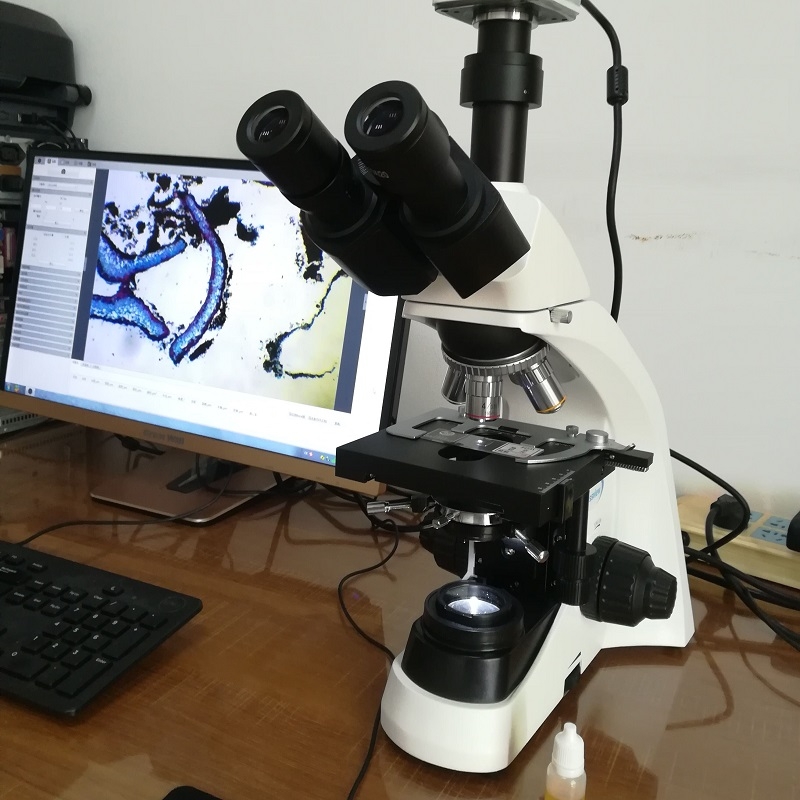

BD-SW2600 Biological Microscope
▲ Plan achramatic optical system
▲ Compound microscope
▲ Compound microscope
▲ Trinocular/Binocular
▲ Wide field WF10 × (Φ18mm)
▲ Plan achromatic objective:
4X, 10X, 40X(spring), 100X(srping,oil)
▲ 6V/20W halogen lamp or LED
▲ Cetificate: CE, Rohs
Product Detail
※Features:
▲ BD-SW2600 is Plan achromatic optical system.
▲ For more application information, please contact us.
| Model | BD-SW2600 |
| Optical system | Plan achromatic optical system. |
| View tube | Trinocular/Binocular, 30 ° inclined, 360°rotating. IPD adjustment: 48mm ~ 75mm, Diopter adjustment: ± 5. |
| Eyepiece | High eye level wide field WF10 × (Φ18mm). |
| Objective | Plan achromatic objective: 4X/0.1, 10X/0.25, 40X/0.65X (spring), 100X/1.25(spring, oil). Optional: 20X, 60X |
| Nosepiece | Quardruple(4-position) . |
| Stage | Double layer stage size:135 × 125mm. Moving range: 75mm ×35mm , Precision: 0.1mm. Double slide holder, with graduation reading up to 0.1mm. |
| Focusing mechanism | Coaxial coarse and fine focusing system. Knobs on both sides. Tension adjustment of coarse regulation knob. Fine adjustable accuracy: 0.002mm. Focusing stoper for protecting the lens and specimen. |
| Illumination | Transmission illumination system. Brightness adjustable. 6V/20W halogen lamp or LED lamp. |
| Condensor | Abbe NA 1.25 condensor, with aperture iris diaphragm. |
| Camera adapter | For trinocular: 0.5X or 1X C-mount. |
| Digital camera | Optional. |
| Power supply | AC100-240V, 50/60Hz |
