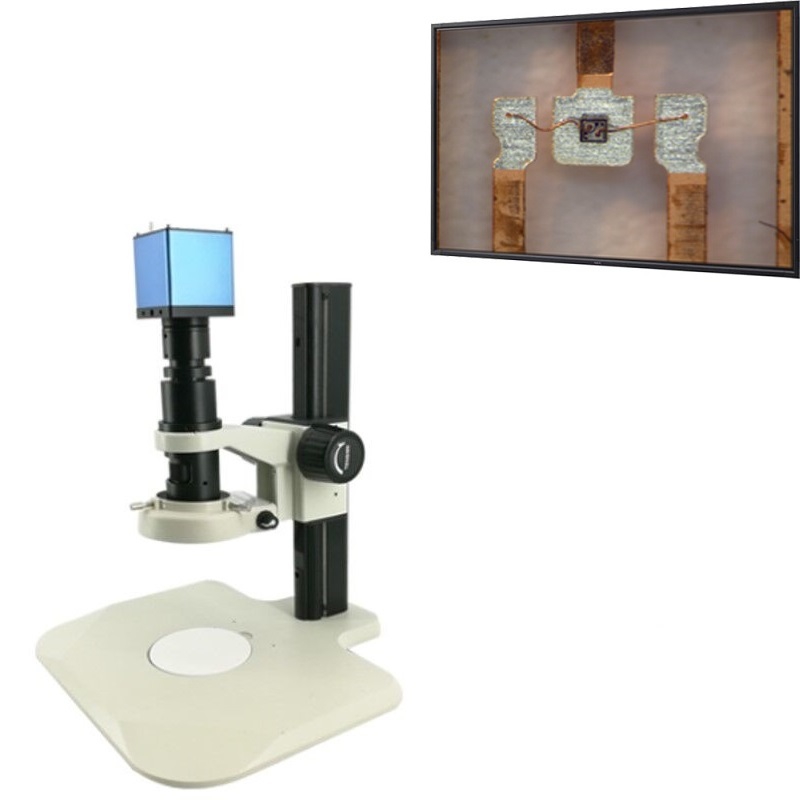

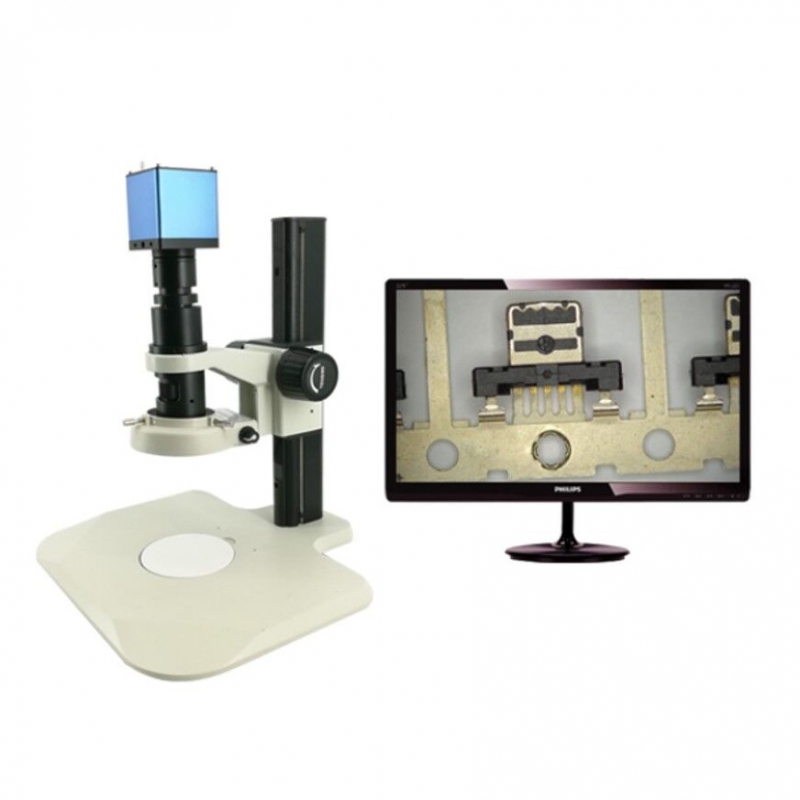

HDMI Video Microscope with bottom light
▲ Magnification: 14 -180X
▲ Lens: 0.7-4.5X
▲ 2MP, 1920*1080P
▲ HDMI Camera
▲ Living image, Taking photo, measurement
▲ Top&bottom LED light
▲ Cetificate: CE, Rohs

Product Detail

▲ HD2005 serial microscope is high quality video microscope with HDMI camera.
▲ It can be connected to a display screen directly.
▲ It has top LED light and bottom LED light.

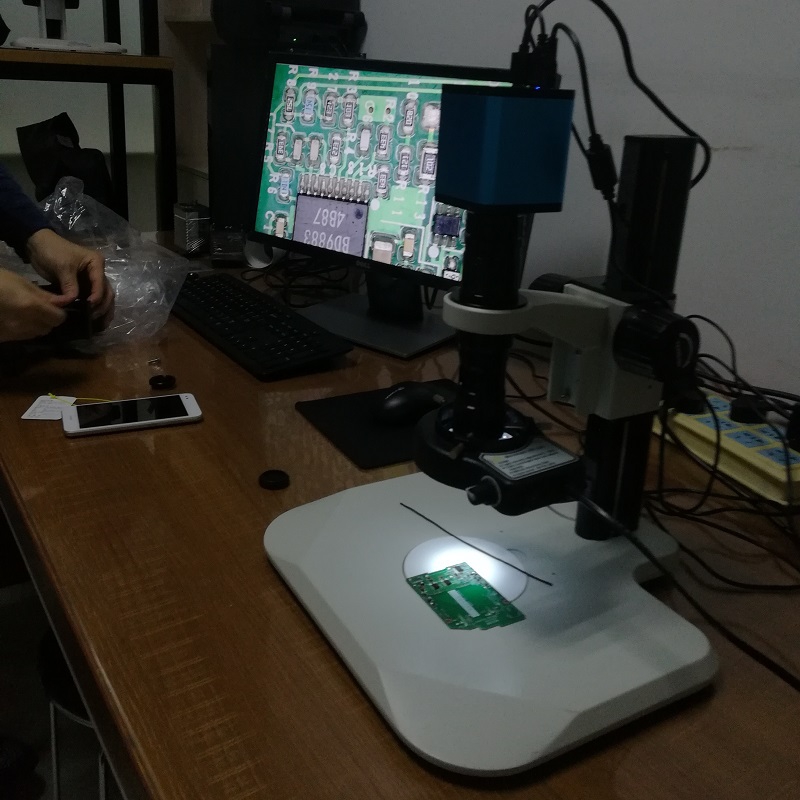

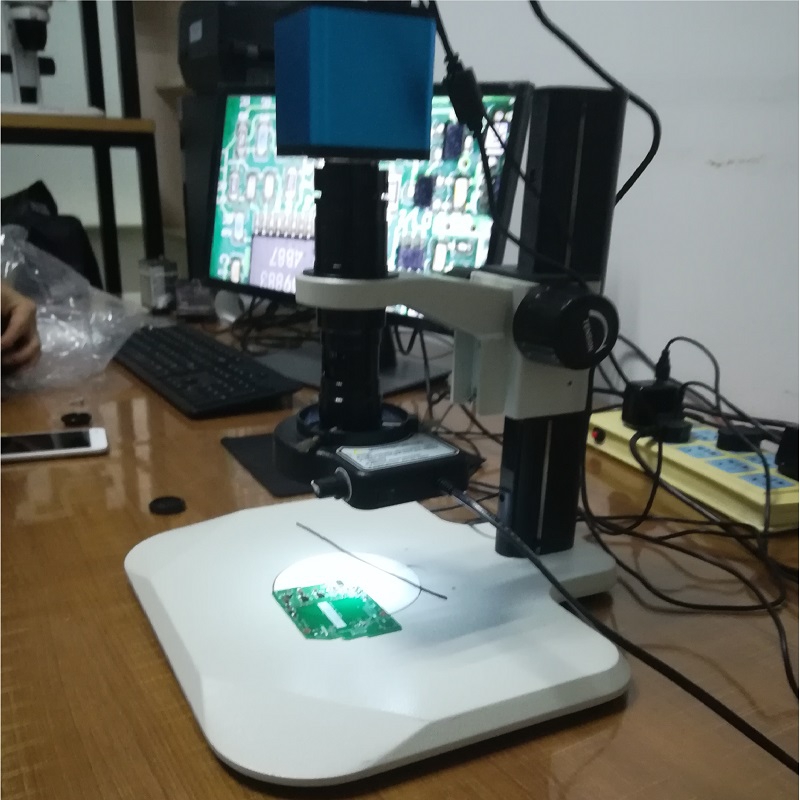

▲ It is a high definition microscope can be used for detecting PCB,small metal parts, plastic, coins,etc.
▲ For more application information, please view SOLUTION.


Model HD2005-A01
Standard Magnification 14 -180X
Function Optional: Living image, capture image, record video,  measurement, moveable Cross lines.
Lens Main len: 0.7-4.5X.
Optional auxiliary lens: 0.5X, 2X.
Resolution/Pixels 2 mega pixels, 1920*1080P.
Field range 2-35mm.
Focusing stroke 65mm.
Camera HDMI camera.
Illumination Top and bottom LED light , brightness adjustable.
Optional part ▲Flexiable LED ring light
▲Auxiliary lens, main lens

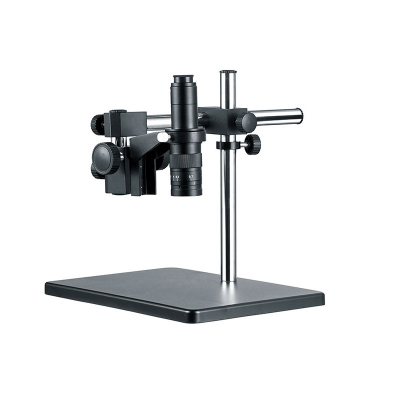

▲Boom stand
▲10-32 inch monitor
▲ Camera
Power supply AC100-240V, 50/60Hz.
