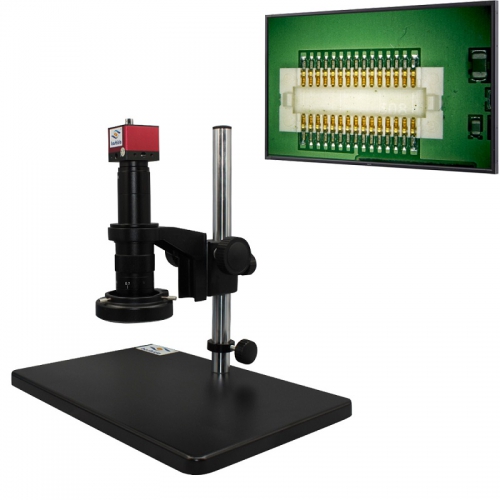

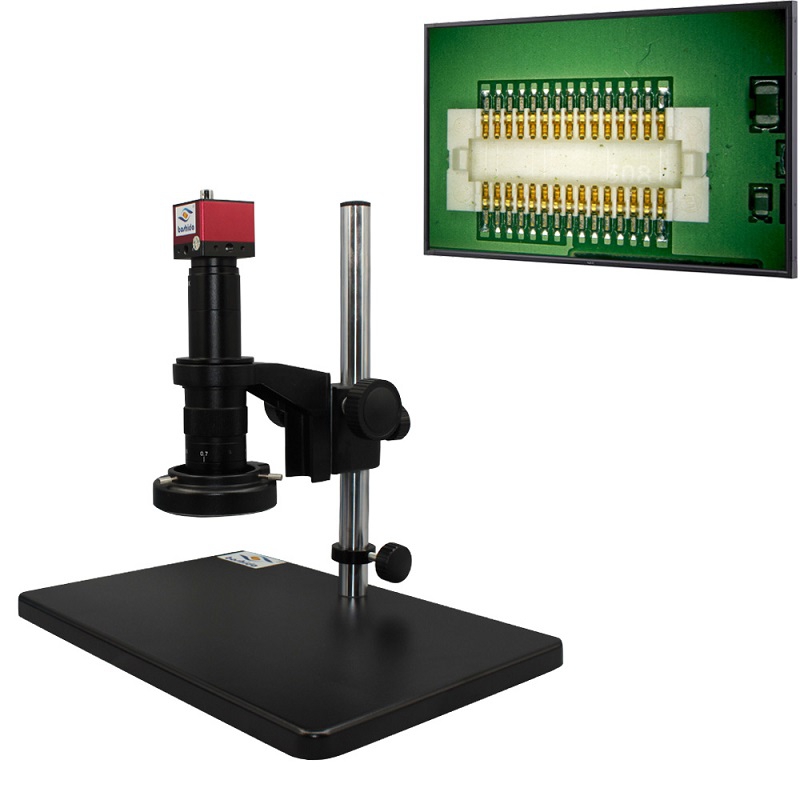

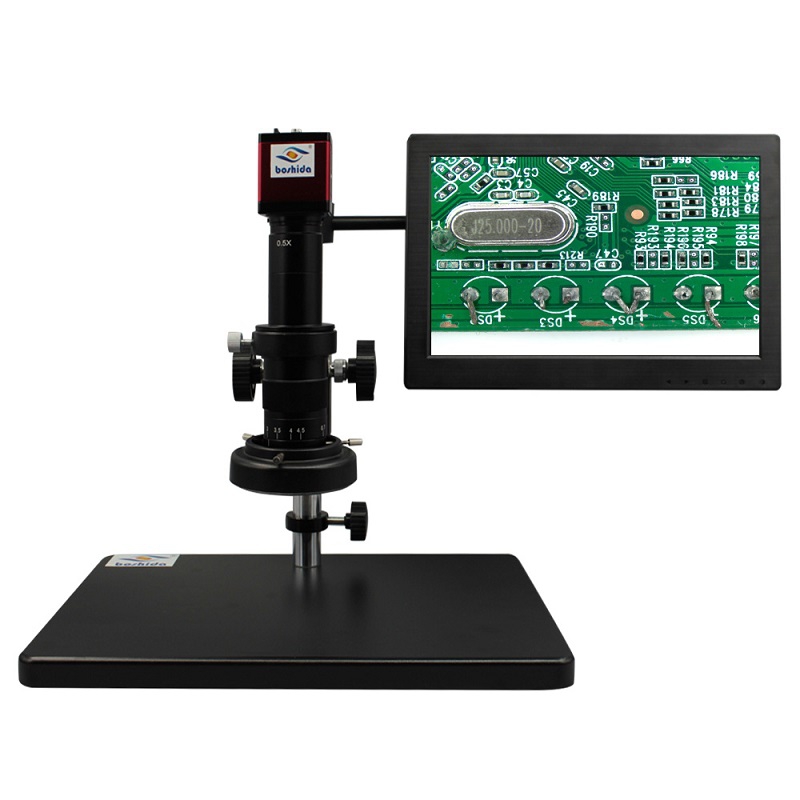

HD1001 serial HDMI digital inspection Microscope
▲ Magnification: 14 -180X
▲ Lens: 0.7-4.5X
▲ 2MP, 1920*1080P
▲ Camera port: HDMI
▲ Memory: 256M~32G
▲ Taking photo, Cross line
▲ Cetificate: CE, Rohs
Product Detail
※Features:
▲ HD1001 serial microscope is high definition video microscope with HDMI camera. It can be connected to a display screen/monitor directly.
▲ HD1001 serial microscope is high definition video microscope with HDMI camera. It can be connected to a display screen/monitor directly.
▲ It can connect USB mouse for capture image.
▲ HD1001 can be used for detecting PCB,small metal parts, plastic parts, coins,etc.
▲ For more application information, please contact us or view SOLUTION.
▲ The lens can be changed according to application and requirement.
▲ HD1001 can be used for detecting PCB,small metal parts, plastic parts, coins,etc.
▲ For more application information, please contact us or view SOLUTION.
▲ The lens can be changed according to application and requirement.
※Specifications:
| Model | HD1001B-A01 |
| Standard Magnification | 14-180X |
| Lens | Main len: 0.7-4.5X Optional auxiliary lens: 0.5X, 2X |
| Function | Living image, capture image, with moveable Cross lines. |
| Resolution/Pixels | 2 mega pixels, 1920*1080P. |
| Field range | 2-35mm |
| Focusing Moving distance | 65mm |
| Camera | HDMI camera. Sony 1/2 inch CMOS color sensor. Frame rate: 45fps. Camera settings by USB mouse for white balance, exposure time, contrast, RGB, etc.. |
| Stage | 380*260mm. |
| Illumination | Hight light LED ring light, brightness adjustable. |
| Optional parts | ▲Flexiable LED ring light ▲Auxiliary lens ▲Main lens ▲Boom stand ▲12-22 inch monitor. |
| Power supply | AC100-240V, 50/60Hz. |
