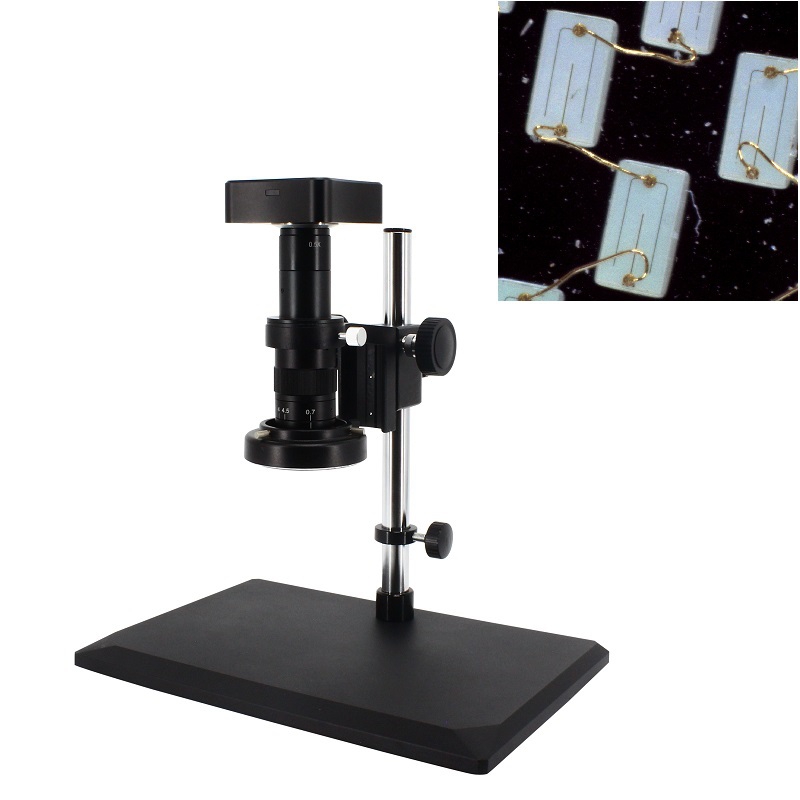

HC630 serial USB camera Video Microscope
▲ Magnification: 14 -150X (Max: 600 X)
▲ Lens: 0.7-4.5X
▲ Pixel: 6.3 mega pixels
▲ Camera port: HDMI
▲ Memory: SD card 256M~32G
▲ Functions:
Taking photo,  Recording video, Measurement
▲ Cetificate: CE, Rohs
Product Detail


▲ HC630 serial video microscope is a high quality microscope.

▲ With 16MB cache and USB3.0 port, the data transfer is much more faster and stable.

▲ It can work with a measurement software which support integrated software development system and third party software.

▲ For more application information, please view SOLUTION.

Model: HC630-A01 serial video microscope


▲ Standard Magnification: 14 -180X(Max 600X):

▲ Resolution/Pixels: 6.3 mega pixels

▲ Field range: 2-16mm

▲ Moving distance: 65mm

▲ Camera port:

▲ Camera features:

Taking photo, recording a video, fit for operation system under WIN10(64bit)

▲ Measurement soft: (Optional):

Taking photo, recording a video, measurement, make a report, fit for operation system under WIN10(64bit).

▲ Stage: 380*260mm

▲ Light source: LED light , the brightness is adjustable.

※Standard confuguration:

Camera (HC630)+Lens:(G type)+ Stage( 01)+Light source(LED light)

※Optional module:

Display screen,Light source, Objective Lens, Stage.

▲ We can change the above modules according to the applications.
