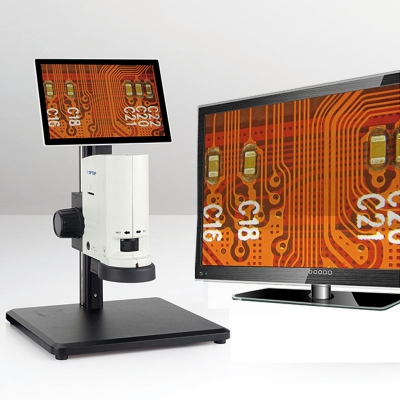

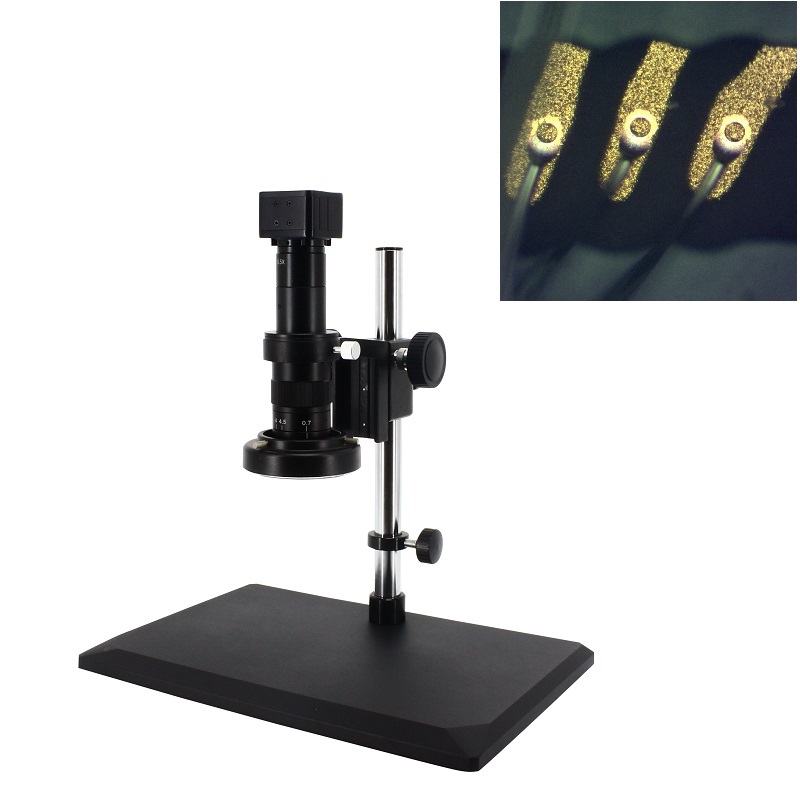

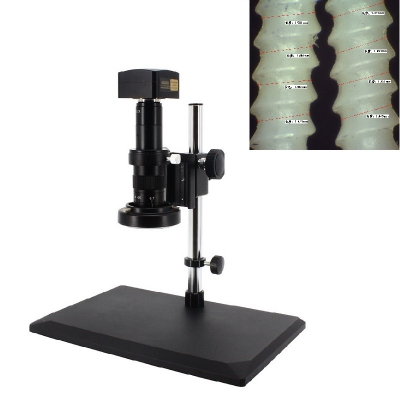

HC300/500/1000 serial USB camera Video Microscope with measuring software
▲ Magnification: 14 -150X (Max: 600 X)
▲ Lens: 0.7-4.5X
▲ Pixel: 3/5/10 mega pixels
▲ Camera port: USB
▲ Functions:

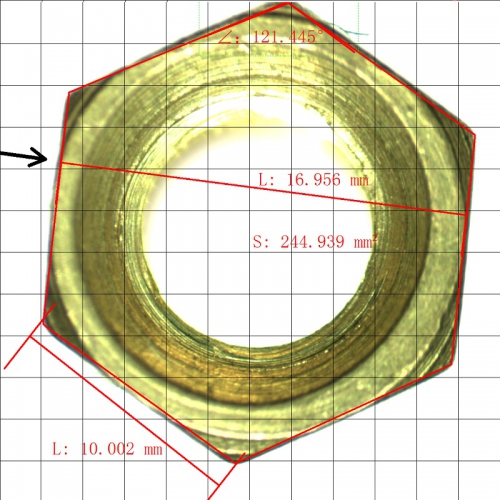

Taking photo, Recording video, Measuring
Taking photo, Recording video, Measuring
▲ Cetificate: CE, Rohs
Product Detail
※Features:
▲ HC300/500/1000 serial video microscope has a 16MB cache USB camera.
▲ It can work with a measurement software which support integrated software development system and third party software.
▲ For more application information, please view SOLUTION.
Model: HC300-G01 HC500-G01 HC1000-G01
※Specifications:
▲ Standard Magnification: 14 -180X (Max: 600 X)
▲ Resolution/Pixels: 5 mega pixels
▲ Field range: 2-16mm
▲ Moving distance: 65mm
▲ Camera port: USB2.0
▲ Camera features: Taking photo, recording a video, measurement, fit for operation system under WIN8(64bit)
▲ Measurement soft:(Optional):
Taking photo, recording a video, measurement, make a report,
fit for operation system under WIN8(64bit)
▲ Stage: 380*260mm
▲ Light source: LED light , the brightness is adjustable.
※Standard confuguration:
Camera (HC500)+Lens:(G type)+ Stage( 01)+Light source(LED light)
※Optional module:
Display screen，Light source， Objective Lens， Stage.
▲ We can change the above modules according to the applications.
