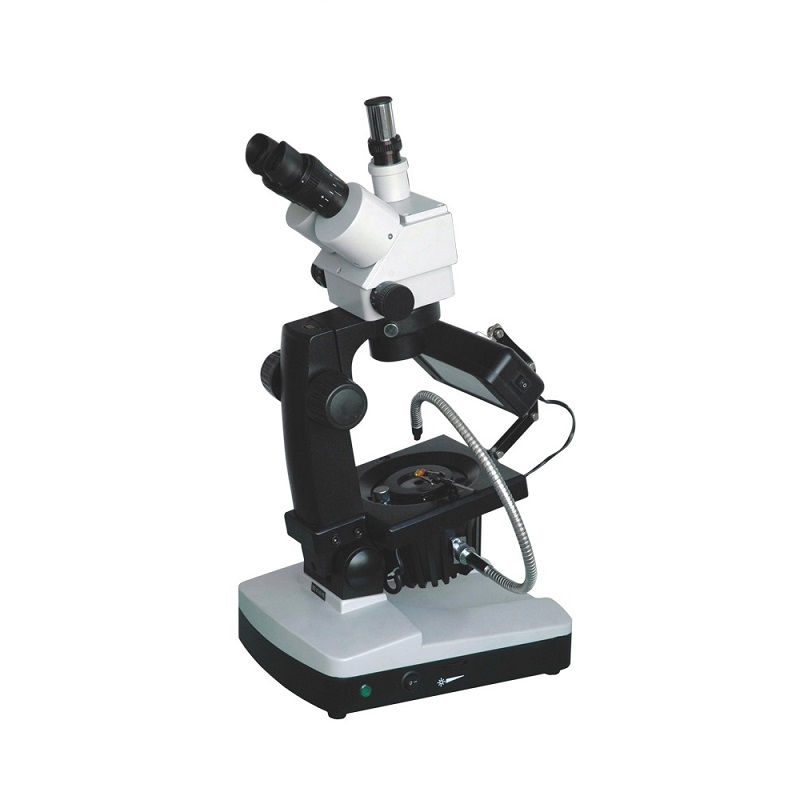

BD-ZB01 Gem stereo Microscope
▲ View tube: Binocular/Trinocular
▲ Eyepiece: WF10× (Φ22mm)
▲ Objective: 0.7-4.5X
▲ Magnification: 7-45X
▲ Working distance: 95mm
▲ Light source: Bottom dark field light and gooseneck LED
▲ Cetificate: CE, Rohs
Product Detail
※Features:
▲ Gem Microscope was designed for gem identification.
▲ It has a dark field bottom light and a flexional goosenk LED light. A wire clip can reduce the the shadow and make multi-angle observing possible.
▲ It has a dark field bottom light and a flexional goosenk LED light. A wire clip can reduce the the shadow and make multi-angle observing possible.
▲ With a polarizer the inside structure can be seen.
▲ For more application information, please view SOLUTION.
▲ For precious stone processing such as diamond setting and jewelry processing, please consult customer service.
▲ For precious stone processing such as diamond setting and jewelry processing, please consult customer service.
※Specifications:
| Model | BD-ZB01 |
| Observation | Bright field, dark field, polarizing. |
| View tube | Binocular, or trinocular, 45 ° inclined |
| Eyepiece | Standard: WF10X(Φ22mm) Optional: 20X |
| Objective | 0.7-4.5X |
| Magnification | Standard: 7-45X Optional: 5.25-180X |
| Working distance | 95mm |
| Illumination | Bottom dark field light and gooseneck LED |
| Auxiliary objective(Optional) | 0.75X, working distance 105mm; 1.5X, workign distance 47mm; 2X, workign distance 33mm. |
| Stage baseplate | With gem holder |
| Camera adapter | For trinocular: Standard: 1X Optional: 0.5X, 2X |
