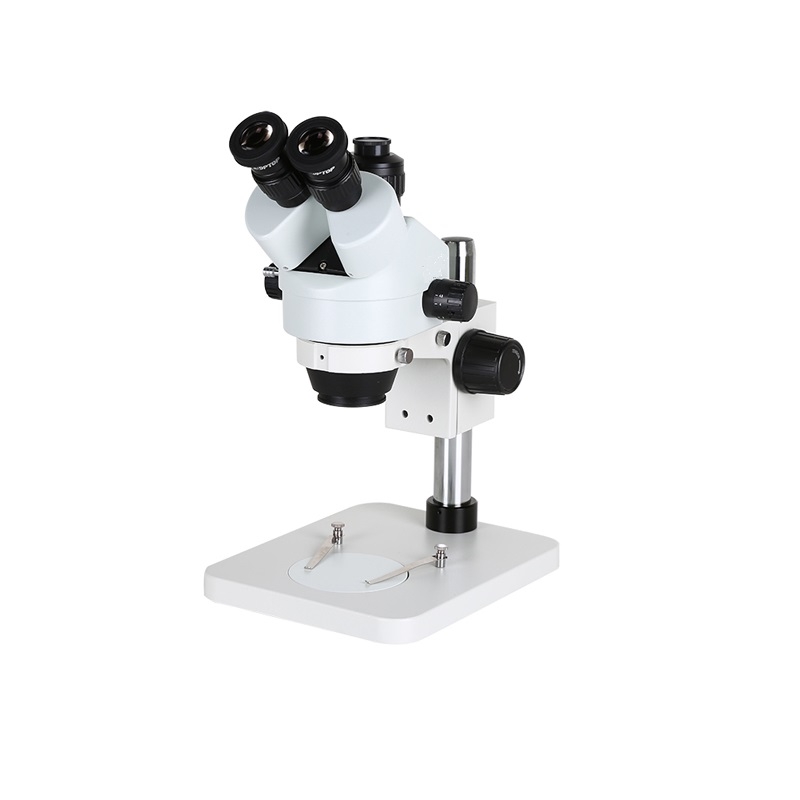

BD-45T1 trinocular Stereo Microscope
▲ View tube: Trinocular
▲ Zoom ratio: 1:6.4
▲ Eyepiece: WF10× (Φ20mm)
▲ Objective: 0.7X-4.5X
▲ Magnification: 7X-45X
▲ Working distance: 100mm
▲ Depth of field: 15mm
▲ Illumination: Top LED
▲ Cetificate: CE, Rohs
Product Detail
※Features:

The magnification of BD-45T1 can be adjusted continously. It has a long working distance and large field range.

 It is fit for medical and clinic, agroforestrial geology, pricise casting, especially for LED checking, PCB checking, clad layer checking and chip detecting.

Model
BD-45T1
View tube
Trinocular, 45 ° inclined.
Magnification Standard: 7X-45X
Can be extended to 3.5X-180X
Zoom ratio
1:6.4
Eyepiece
WF10× (Φ20mm)
Optional: 15X, 20X
Objective
0.7X-4.5X
Optional Auxiliary lens
Optional(Not standard): 0.5X, 2X
Working distance
100mm
Depth of field
15mm
Illumination
Top LED ring light.
Stage
Stage size: 200X255cm.
Φ95mm black and white board.
Camera adapter
1X C-mount.
Optional: 0.5X.
Digital camera
Optional.
