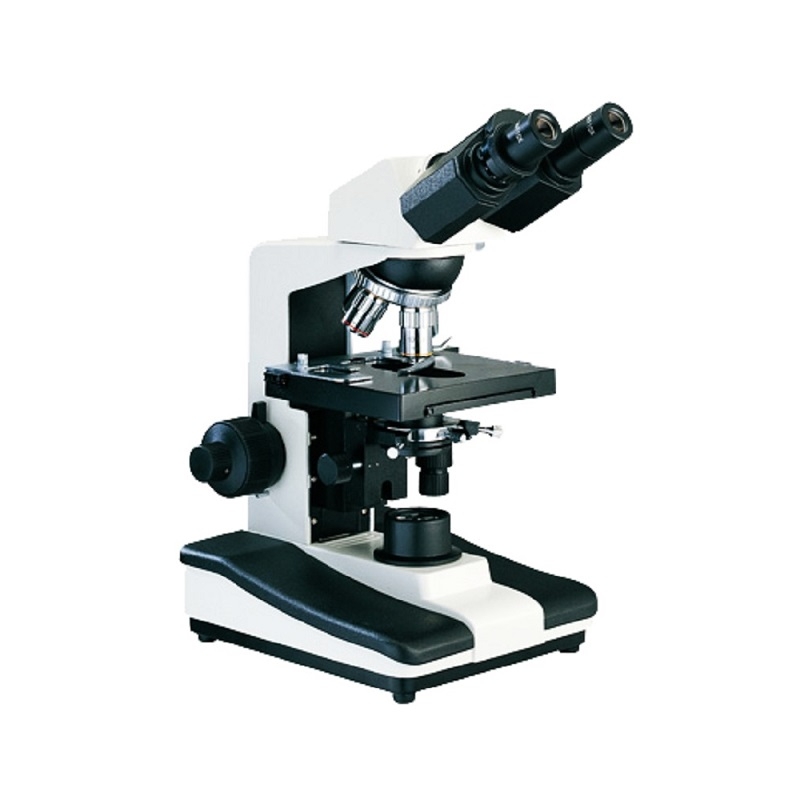

BD-SW3001 dark field Biological Microscope
▲ Plan achromatic optical system.
▲ Dark field.
▲ Dark field.
▲ Binocular/Trinocular.
▲ Wide field WF10 × (Φ18mm).
▲ Plan 4X/0.1, 10X/0.25, 40X/0.65(spr), 100X(spr.,oil).
▲ 6V/20W halogen lamp or LED.
▲ Cetificate: CE, Rohs.
Product Detail
※Features:
▲ BD-SW3001 has clear imaging, broad vision, can be widely used in biology, medicine, industry, agriculture and other fields.
▲ Flat field achromatic system.
▲ Compound light microscope with dark field condenser.
▲ Flat field achromatic system.
▲ Compound light microscope with dark field condenser.
▲ View tube: Binocular/Trinocular.
▲ Fit for research lab, education, industrial lab, medical lab.
| Optical system | Plan achromatic system |
| View tube |
Binocular/Trinocular , 30 ° inclined, 360°rotating
IPD adjustment: 54mm ~ 75mm
Diopter adjustment: ± 5 diopters Splitting ratio: 100: 0. |
| Eyepiece | Wide field PL10 × (Φ18mm) |
| Objective | Plan achromatic objective: 4X/0.1, 10X/0.25, 40X/0.65(spr), 100X(spr.,oil). Optional: 20X |
| Nosepiece | Quadruple(Four-position). |
| Stage | Stage size:160×140mm. Moving range: 75mm ×50mm Precision: 0.1mm |
| Focusing mechanism |
Coaxial coarse and fine focusing system.
Focusing stoper for protecting the lens and specimen.
Tightness and height limitation of coarse regulation are adjustable.
Fine adjustment accuracy :0.002mm.
|
| Illumination |
Transmission illumination system.
6V/20W halogen lamp or LED, brightness adjustable. |
| Condenser | Dark field conderser. |
| Camera adapter | 0.5X or 1X C-mount. |
| Camera | Optional. |
| Power supply | AC100-240V, 50/60Hz |
