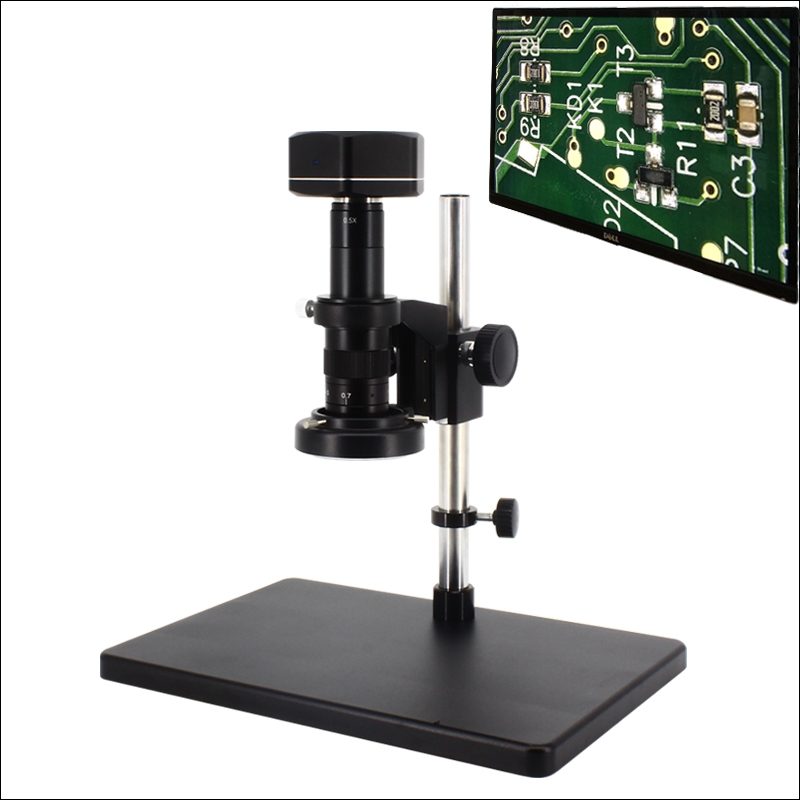

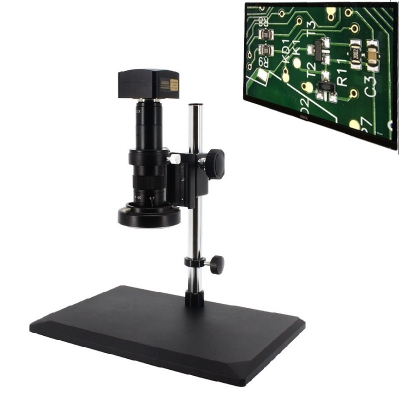

HC300/500 serial digital video Microscope with measurment software
▲ Magnification: 14 -180X
▲ Lens: 0.7-4.5X
▲ 3MP or 5MP
▲ Camera port: USB2.0
▲ Taking photo, Recording video, Measuring
▲ Cetificate: CE, Rohs
Product Detail
※Features:
▲ HC300/500 serial video microscope is a USB digital microscope can connect to computer.
▲ With measurement software it can measure image within the view field.
▲ For more application information, please contact us or view SOLUTION.
※Specifications:
| Model | HC300-A01 | HC500-A01 |
| Standard Magnification | 14X-180X |
|
| Function | Living image, capture image, record video, measurement. |
|
| Lens | Main len: 0.7-4.5X. Optional auxiliary lens: 0.5X, 2X. |
|
| Resolution/Pixels | 3MP, 2048*1536 | 5MP, 2592*1944 |
| Field range | 2-35mm |
|
| Focusing Moving distance | 65mm |
|
| Camera | USB2.0 camera. Sony 1/2 inch CMOS color sensor. Max Frame rate 48fps. Camera setting and control by software on computer. |
USB2.0 camera. Sony 1/2 inch CMOS color sensor. Max Frame rate 30fps. Camera setting and control by software on computer. |
| Software | ▲Taking photo, recording video, measurement. ▲Control of all camera functions. ▲Automatic exposure/Manual exposure/area exposure. ▲Automatic continous white balance/One touch white balance/area white balance. ▲Measurement: Circle: radius, circumference, squre. Distance from center of a circle to a line, to a point, to another center of a circle. Arc: radius, arc length, radian. Rectangle: length, width, square and perimeter. Polygon: primeter and square. Elipse: primeter and square; Length, angle. ▲For win7/8/10(64 bit). |
|
| Stage | 380*260mm. |
|
| Illumination | Hight light LED ring light, brightness adjustable. |
|
| Optional part | ▲Flexiable LED ring light ▲Auxiliary lens, main lens ▲Boom stand |
|
| Power supply | AC100-240V, 50/60Hz. | |
