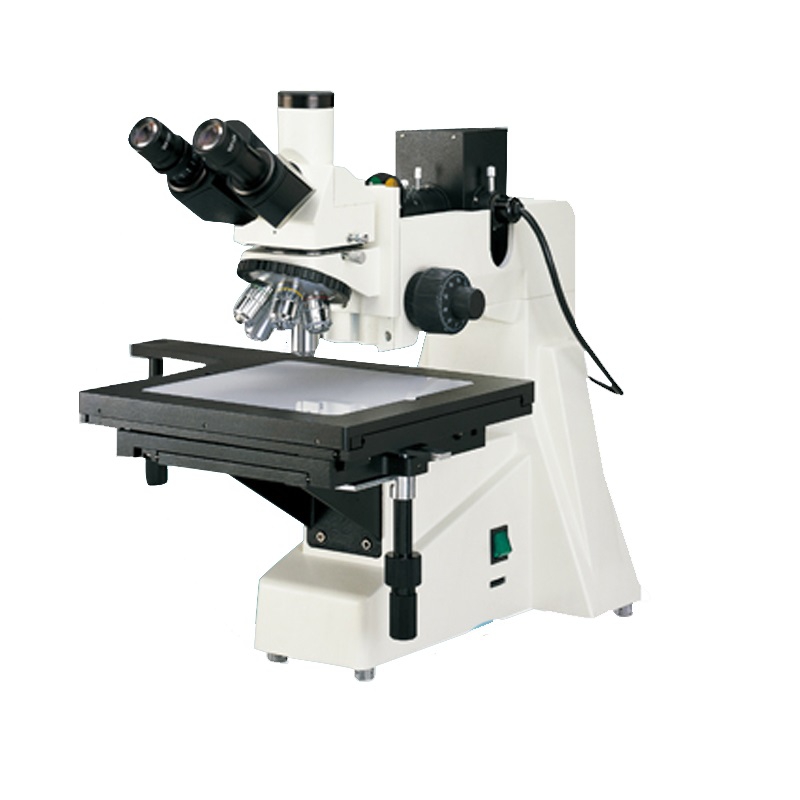

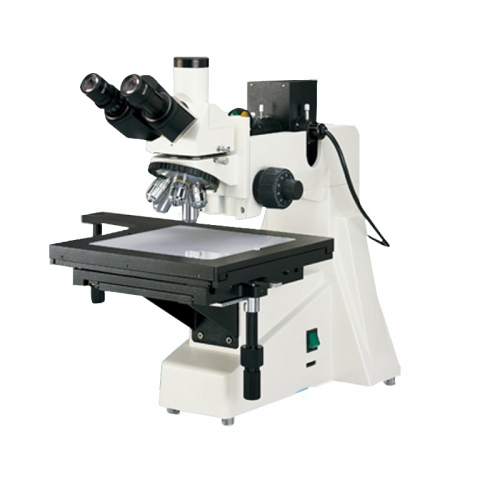

BD-JL2001 large stage Metallurgical Microscope
▲ Optical system: Achromatic optical system
▲ Observation:
Reflecting, simple polarization, transmission
Reflecting, simple polarization, transmission
▲ Eyepiece: WF PL10 × (Φ18mm)
▲ Objective: 5X, 10X, 20X, 40X, 80X
▲ Light source: 6V/20W halogen lamp
▲ Cetificate: CE, Rohs
产品描述
※Features:
▲ BD-JL2001 is a large stage microscope with large moving range.
▲ It is fit for opaque material analysis, mineral analysis, precise instrument, school, etc..
▲ Maginification: 50X, 100X, 200X, 400X, 800X.
▲ For more application information, please view SOLUTION couslt with us.
※Specifications:
| Model | BD-JL2001 |
| Observation | Reflecting, simple polarization, transmission |
| Optical system | Achromatic optical system |
| View tube | Trinocular, Hinge trinocular, 30° Tilt, with built-in analysis |
| Eyepiece | WF PL 10X(Φ18mm) |
| Objective | Achromatic flat fiedl long working distance metallurgical objective: PL5X,PL L10X, PL L20X/0.4, PL L40X, PL L80X |
| Nosepiece | Quintuple converter |
| Stage | Three layer mechanical stage(choose one from below): 1. 250mm*230mm, moving range 154mm*154mm; 2. 280mm*270mm, moving range 204mm*204mm. |
| Focusing mechanism | Coxial positioning system; Tightness and height limitation of coarse regulation are adjustable; Fine adjustment accuracy: 0.002mm. |
| Light source | Epi-illuminator with center adjustable field stop and aperture stop; 6V/20W halogen lamp, the brightness is adjustable. |
| Filter | Yellow filter, blue filter, green filter and grand glass |
| Polarization | Polarizer and analyer |
