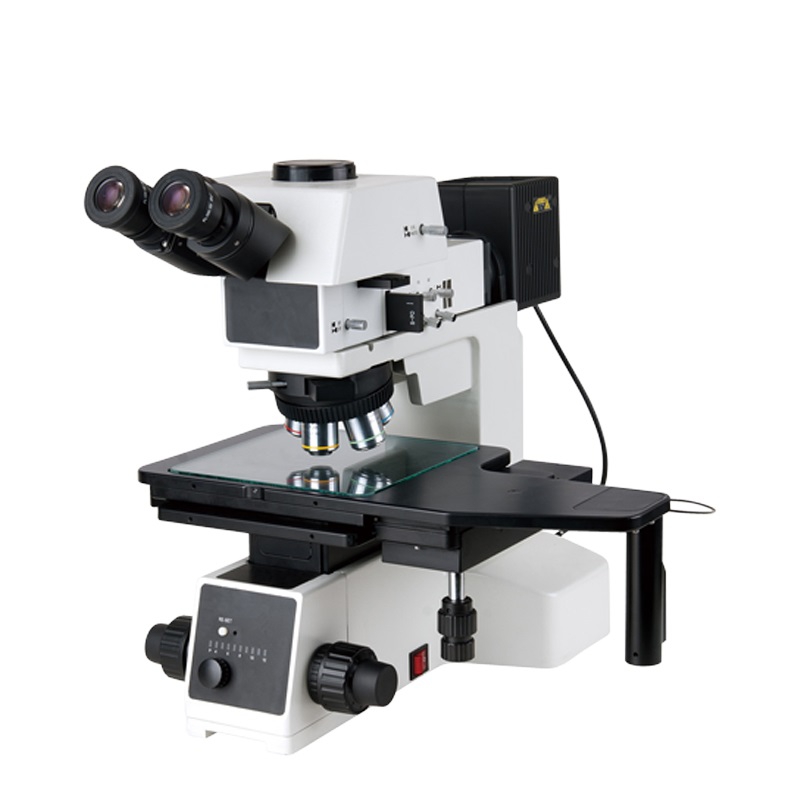

BD-6R//BD-6RT large stage Metallurgical Microscope
▲ Optical system: Infinity achromatic optical system
▲ Observation: Light field, obque illumination, polarization,DIC, transmission
▲ Eyepiece: High eye level WF PL10 × (Φ22mm)
▲ Objective:
Standard configuration: 5X,10X, 20X, with DIC;
Optional: 50X, 100X, with light field and dark field.
▲ Light source:
Reflecting : 12V/100W halogen lamp
Transmission: 5W white light LED
▲ Cetificate: CE, Rohs
产品描述
※Features:
▲ BD-6R/BD-6RT is a modularized research microscope.
▲ BD-6R/BD-6RT is a modularized research microscope.
▲ Function module as DIC, polarization, light field, obque illumination can be choosed in different situations.
▲ Glass stage plate is suitable for using transmission light and reflecting light at the same time.
▲ BD-6R/BD-6RT is suitable for PCB cross section analysis, plating thickness measurement, material analysis, inner hole checking or measurement, etc..
▲ For more application information, please view SOLUTION couslt with us.
※Specifications:
| Model | BD-6R/BD-6RT |
| Observation | Light fieldd, dark field, polarization, DIC, transmission |
| Optical system | Infinity achromatic optic system |
| View tube | Trinocular, Hinge trinocular, 25° Tilt, Splitting ratio: 100:0 or 0:100 |
| Eyepiece | High eye level WF PL10X(Φ22mm) |
| Objective | LM PL-BD infinity long working distance light field and dark field metallurgical objective; Standard configuration: 5X, 10X, 20X, with DIC; Optional: 50X, 100X, with light field and dark field. |
| Nosepiece | Quintuple converter with DIC slot |
| Stage | 6 inch three layer mechanical stage, glass stage plate; Reflecting moving range: 158mm*158mm; Transmission moving range: 100mm*100mm; Right hand wheeled controller for X and Y direction; Cluth handle achieves fast moving. |
| Microscope Column | Coxial positioning system Tightness and height limitation of coarse regulation are adjustable Fine adjustment accuracy: 0.001mm Coarse adjustment: 33mm Built in power supply(input: AC90V~240V): singe output/dual output |
| Light source | Reflecting kohler illumination, 12V/100W halogen lamp, with center adjustable field stop and aperture stop. The brightness is adjustable, with filter slot and polarizer slot. with obque illumination shifter; Transmission illumination, 5W white light LED with adjustable aperture stop. The brightness is adjustment; N.A0.5 condensor, with center adjustable apertuer stop. |
