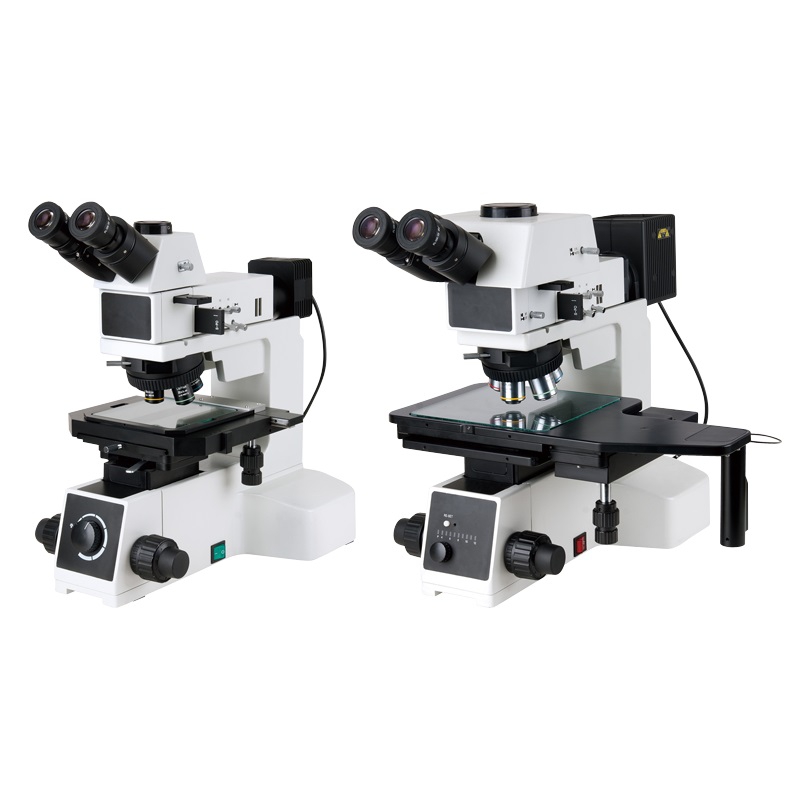

BD-4R/BD-4RT Metallurgical Microscope
▲ Observation：
Light field, obque illumination, polarization,DIC, transmission
Light field, obque illumination, polarization,DIC, transmission
▲ Optical system：Infinity achromatic optical system
▲ Eyepiece：WF PL10 × (Φ22mm)
▲ Objective：5X, 10X, 20X, 50X
▲ Llight source：12V/100W halogen lamp
▲ Cetificate: CE, Rohs
产品描述
※Features:
▲ BD-4R//BD-4RT is a modularized research microscope.
▲ Function module as DIC, polarization, light field, obque illumination can be choosed in different situations.
▲ High magnification objective is semi apochromatic objective which make the image clear, sharp and in high contrast.

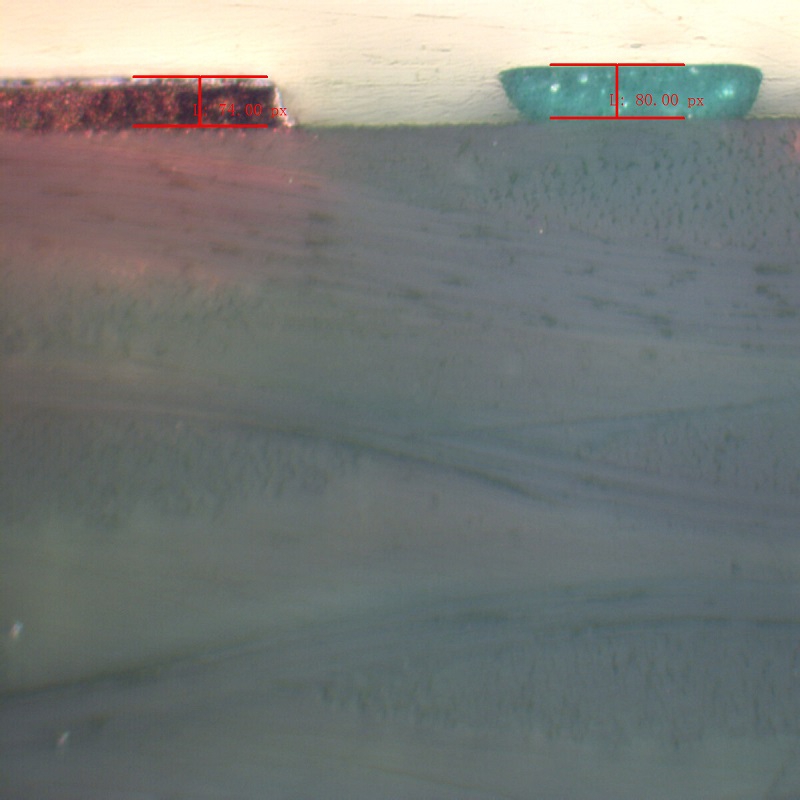

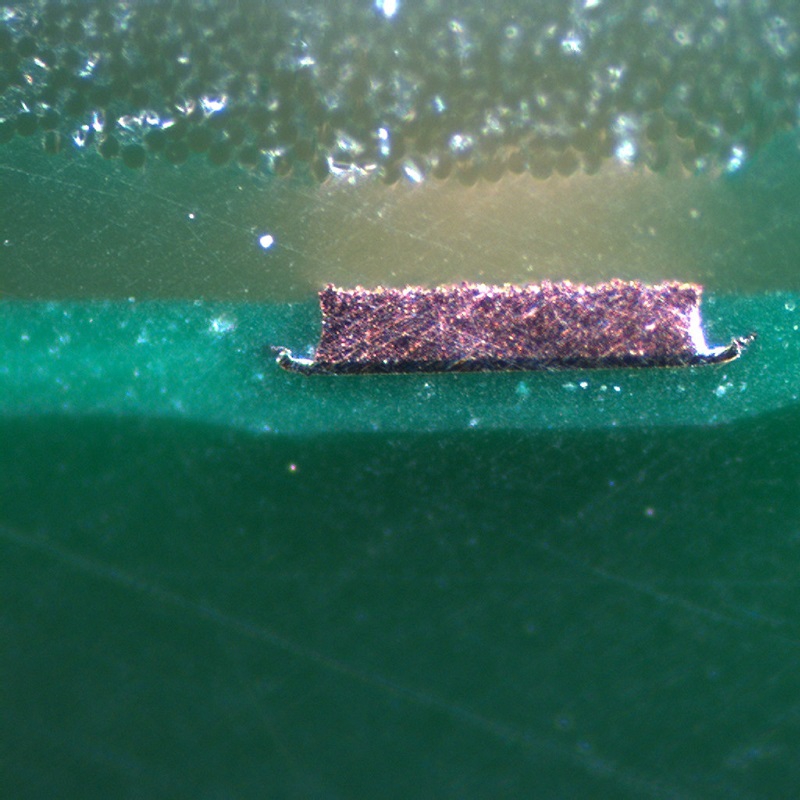

▲ BD-4R//BD-4RT is suitable for PCB cross section analysis, plating thickness measurement, LCD checking, material analysis etc..
▲ For more application information, please view SOLUTION couslt with us.
| Model | BD-4R/BD-4RT |
| Observation | Light field, obqur illumination, polarization, DIC, transission |
| Optical system | Infinity achromatic optical system |
| View tube | Trinocular, Hinge trinocular, 30° Tilt, Splitting ratio: 100:0 or 50:50 |
| Eyepiece | High eye level WF PL 10X(Φ22mm) |
| Objective | LM PL infinity achromatic long working distance metallurgical objective: 5X, 10X, 20X, 50X |
| Nosepiece | Quintuple converter with DIC slot |
| Stage | 4 inch double layer mechanical stage, moving range: 105mm*105mm Right hand gang control for X and Y direction Reflecting and transmission glass stage plate |
| Microscope column | Coaxial positioning system; Tightness and height limitation of coarse regulation are adjustable; Fine adjustment accuracy: 0.001mm; Coarse adjustment: 33mm |
| Power supply | Built in power supply(input: AC90V~240V): dual output |
| Light source | Reflecting kohler illumination: 5W white light LED, with center adjustable field stop and apertuer stop; The brightness is adjustable. With filter slot and polarizer slot, With obque illumination shifter. Transmission illumination: 5W white light LED with adjustable aperture stop, The brightness is adjustable. N.A0.9 condensor, with center adjustable aperture stop |
