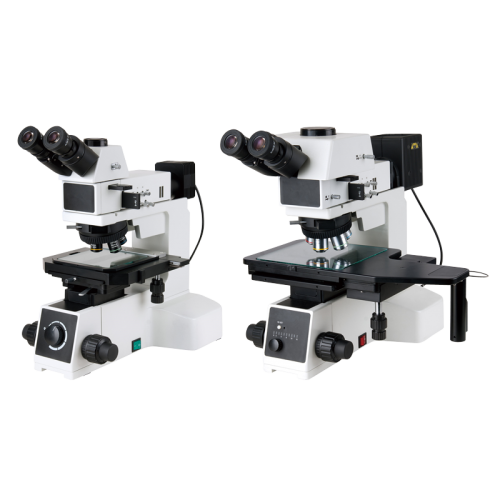

BD-4R Metallurgical Microscope
▲ Bright field, dark field, polarizing, DIC
▲ Infinity Plan achromatic optical system
▲ Eyepiece：WF10 × (Φ22mm)
▲ Objective：5X, 10X, 20X, 50X, 100X
▲ Illumination：Halogen lamp or LED
▲ Cetificate: CE, Rohs
Product Detail
※Features:
▲ BD-4R is a research microscope with optional observation method Bright field/dark field/polairzing/DIC.
▲ Infinity plan achromatic objectives make the image clear, sharp and in high contrast.
▲ It is suitable for PCB cross section analysis, layer thickness measurement, LCD checking, metal or nonmetal material analysis, etc..
▲ For more application information, please view SOLUTION or couslt with us.
※Specifications:
| Model | BD-4R |
| Observation | Standard: Bright field, polarizing. Optional: Dark field, DIC. |
| Optical system | Infinity Plan achromatic optical system |
| View tube | Trinocular, 30° inclined, 360°rotating, splitting ratio: 100:0 or 50:50. IPD adjustment: 54mm ~ 75mm. Diopter adjustmen: ± 5. |
| Eyepiece | Standard: High eye level WF PL 10X(Φ22mm) |
| Objective | Infinity plan achromatic long working distance metallurgical objective: 5X 10X 20X 50X Optional: 100X |
| Nosepiece | Reversed Quintuple(5-position). |
| Stage | 4 inch double layer mechanical stage, moving range: 105mm*105mm Right hand gang control for X and Y direction. Optional: 6 inch stage |
| Focusing system | Coaxial coarse and fine focusing system. Tightness and height limitation of coarse regulation are adjustable; Fine adjustment accuracy: 0.001mm. Coarse adjustment: 33mm. With focusing stopper to protect objective and specimen. |
| Illumination | Reflected illimulation: 100W halgoen lamp, with center adjustable field stop and aperture stop. Brightness adjustable. Transmitted illimulation: 100W halgoen lamp, with center adjustable field stop and aperture stop. Brightness adjustable. |
| Camera adapter | 0.5X or 1X C-Mount. |
| Digital camera | Optional. |
| Power supply | AC90V-240V, Hz50/60Hz. |
