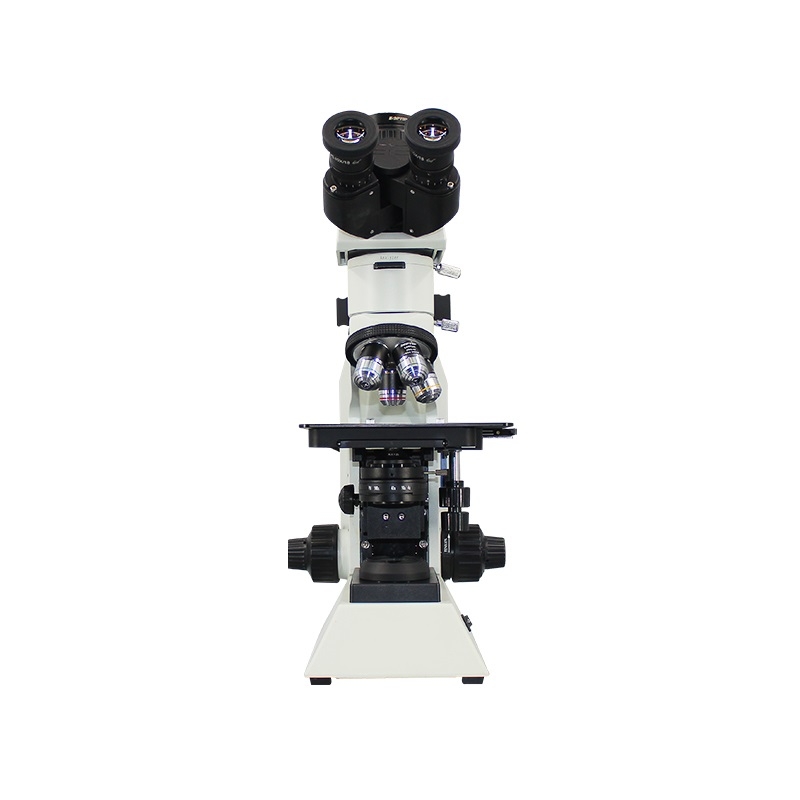

BD-200 Metallurgical Microscope
▲ Plan Achromatic optical system
▲ Bright field and polarizing
▲ Reflected and transmitted illumination
▲ Reflected and transmitted illumination
▲ Eyepiece: WF10 × (Φ18mm)
▲ Objective: 5X, 10X, 20X, 50X, 100X
▲ Halogen lamp or LED illumination
▲ Cetificate: CE, Rohs
Product Detail
※Features:
▲ BD-200 is a universal metallurgical microscope with simple polarizing.
▲ It is competent for material analysis, mineral analysis, etc..
▲ Optical Maginification: 50X, 100X, 200X, 500X, 1000X.
▲ For more application information, please contact us.
※Specifications:
| Model | BD-200 |
| Observation | Bright field, polarizing. |
| Optical system | Plan Achromatic optical system. |
| View tube | Trinocular, 30° inclined. 360°rotating. IPD adjustment: 54mm ~ 75mm, Diopter adjustment: ± 5 diopters. |
| Eyepiece | WF PL 10X(Φ18mm). |
| Objective | Plan Achromatic long working distance metallurgical objective: Standard: PL5X, PL L10X, PL L20X, PL L50X Optional: 100X |
| Nosepiece | Quadruple(4-position) nosepiece. |
| Stage | Double layer mechanical stage: Stage size: 180mm*145mm, moving range 76mm*50mm. Right hand control for X and Y direction. |
| Focusing mechanism | Coaxial positioning system. Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy: 0.002mm Focusing stopper to protect the objective and samples. |
| Illumination | Reflected illumination &transmitted illumination with center adjustable field stop and aperture stop; Halogen lamp or LED, brightness adjustable. |
| Polarizing kits | Polarizer and analyer |
| Camera adapter | 0.5X or 1X C-Mount. |
| Camera | Optional |
| Power supply | AC100V-240V, 50/60Hz |
