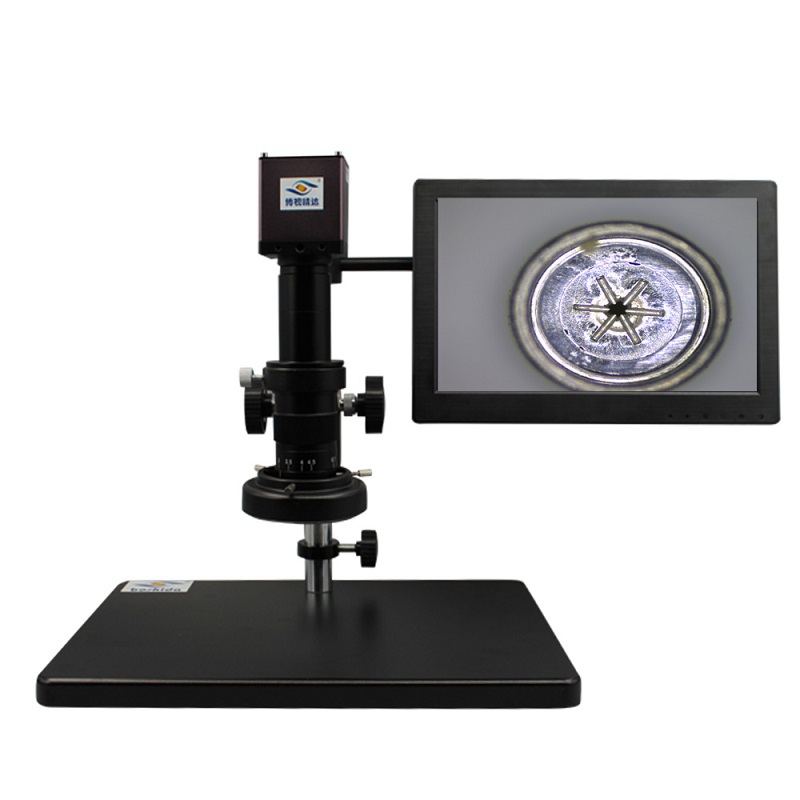

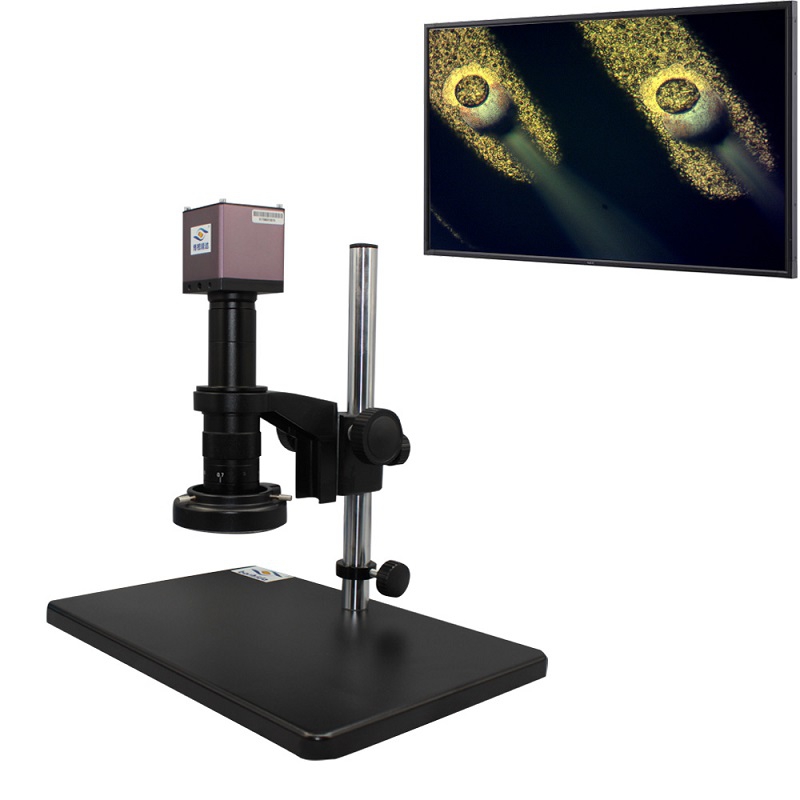

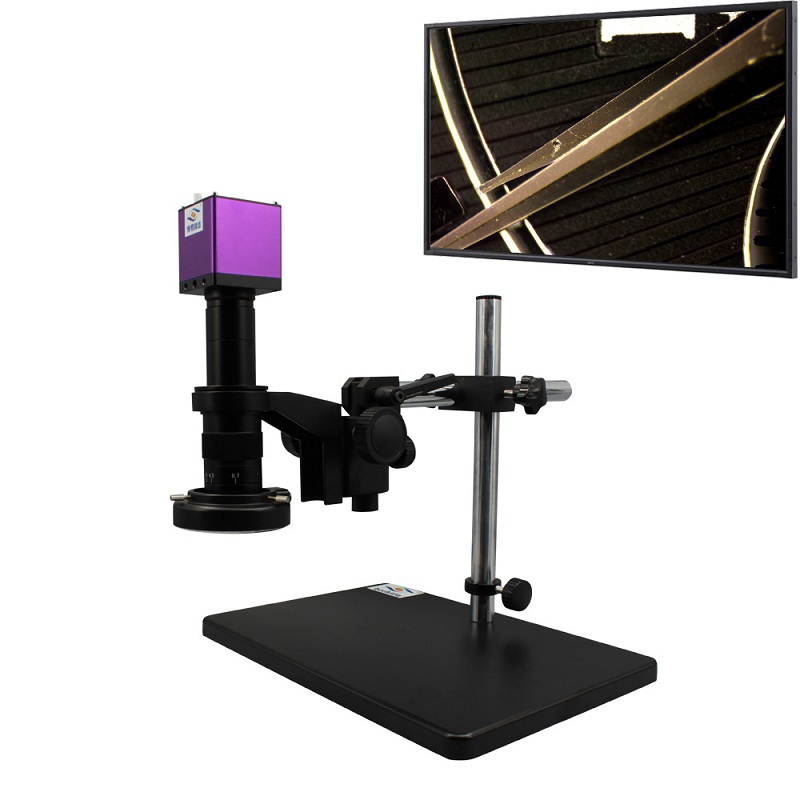

HD2000 serial HDMI digital camera high definition Video Microscope
▲ Magnification: 14 -180X
▲ Lens: 0.7-4.5X
▲ Lens: 0.7-4.5X
▲ 2MP, 1920*1080P
▲ Camera port: HDMI
▲ Memory: SD card
▲ Taking photo, Recording video, measurement
▲ Memory: SD card
▲ Taking photo, Recording video, measurement
▲ Cetificate: CE, Rohs
Product Detail
※Features:
▲ HD2000 serial microscope is high quality video microscope with HDMI port. It can be connected to a display screen directly.
▲ The lastest color deal method and edge enhancement technology make the image fidelity and delicate, sharp and stereo.
▲ With high definition image, it is fit for high precision metal hardware, plastic, electronic products, etc.
▲ It can capture image, record video, measuring.
▲ It can capture image, record video, measuring.
▲ For more application information, please contact us or view SOLUTION.
※Specifications:| Model | HD2000-A01 |
| Standard Magnification | 14-180X |
| Function | Living image, capture image, record video, measurement, moveable Cross lines. |
| Lens | Main len: 0.7-4.5X. Optional auxiliary lens: 0.5X, 2X. |
| Resolution/Pixels | 2 mega pixels, 1920*1080P |
| Field range | 2-16mm |
| Moving distance | 65mm |
| Camera | HDMI camera. Sony 1/2 inch CMOS color sensor. Frame rate: 60fps. Camera settings by USB mouse for white balance, exposure time, contrast, RGB, etc.. |
| Memory | SD card. |
| Stage | 380*260mm. |
| Illumination | Hight light LED ring light, brightness adjustable. |
| Optional part | Flexiable LED ring light, auxiliary lens, main lens, boom stand. |
| Power supply | AC100-240V, 50/60Hz. |
