BD-S2 inverted Biological Microscope
▲ Optical system: Achromatic optical system
▲ Trinocular compound microscope.
▲ Eyepiece: WF PL10 × (Φ20mm)
▲ Objective:  Flat field achromatic objective:
                       10X/0.25, 25X/0.4, 40X/0.6
▲ Phase contrast objective: 10X/0.25
▲ Light source: 6V/30W halogen lamp or LED
▲ Fit for cell culture
▲ Cetificate: CE, Rohs
Product Detail
※Features:

▲ BD-S2 is a inverted biological microscope.

▲ It can be used to observe undyed biopsy specimen or transparent liquid in the petri dish or  culture vessel.

Phase contrast, light field.

▲ For more application information, please view SOLUTION or Contact US.





Optical system Achromatic optical system

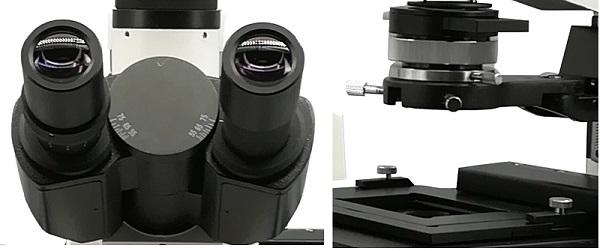

View tub Trinocular,  30 ° incline
Splitting ratio:  100%:0, 0:100%,
IPD adjustment: 54mm ~ 75mm
Diopter adjustment: ± 5 Diopter adjustable.
Eyepiece WF PL10 × (Φ20mm)
Objective(Optional)
Long working distance flat field achromatic objective:
10X/0.25, 25X/0.4, 40X/0.6

Long working distance flat field achromatic phase contrast objective:
10X/0.25,
25X/0.4, 40X/0.6
Nosepiece Four-hole converter
Stage(Optional)
Double layer mechanical stage.
Stage size:224× 208mm. moving range: 112mm ×79mm
Specimen holder:
For Φ68 or 77X29 petri dish
For 82X57mm petri dish
For 128X85mm
For 96 holes petri dish.
Phase contrast device(optional)
Central telescope.
 N.A. 0.4 condensor,  moving distance:50mm.
Tension plate: 10X phase contrast annual plate
25X, 40X phase contrast objective
Focusing mechanism Tightness and height limitation of coarse regulation are adjustable.
Fine adjustment accuracy :0.002mm
Llight source 6V/30W halogen lamp, brightness adjustable.
Filter Blue filter,green filter and grand glass.
Camera (Optional) 0.4X, 0.5X, 1X
