※Features:

▲The magnification of BD-0750 can be adjusted continously. It has a long working distance and large field range.

▲ It is fit for medical and clinic, agroforestrial geology, pricise casting, especially for LED checking, PCB checking, clad layer checking and chip detecting.

Model	BD-0750

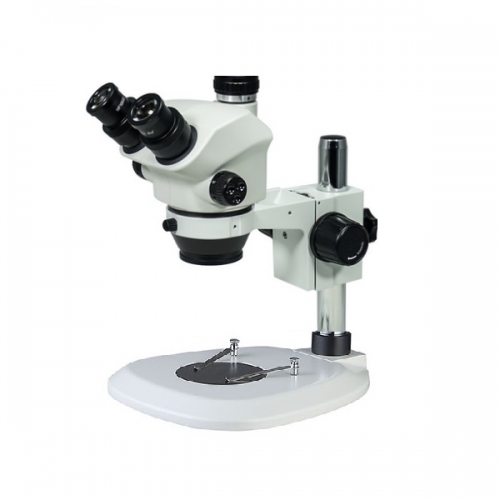

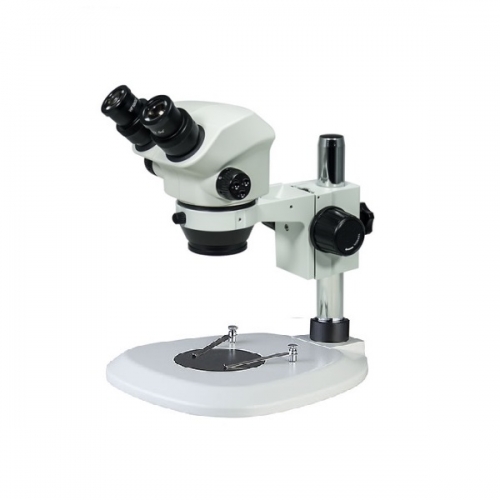

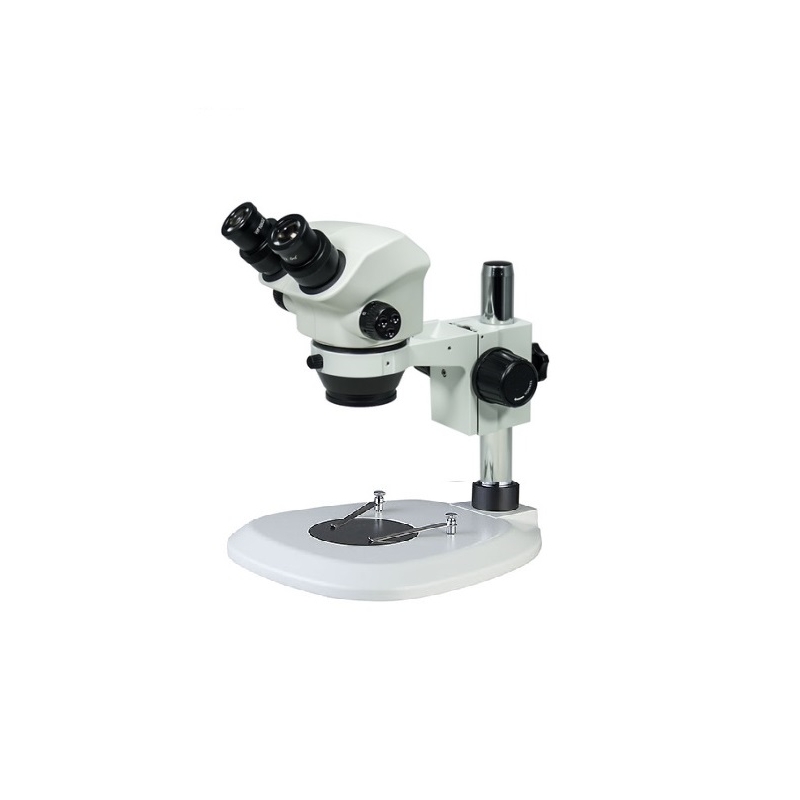

View tube	Trinocular or binocular head, 45 ° inclined tube, 360° rotateable.
Magnification	Standard: 7X-50X  Can be extended to 3.5X-200X
Zoom ratio	1:7.14
Eyepiece	WF10× (Φ20mm) Optional: 15X, 20X
Objective	0.7X-5X
Optional Auxiliary lens	Optional(Not standard): 0.5X, 2X
Working distance	100mm
Depth of field	15mm
Illumination	Top LED ring light. Bottom LED light.
Stage	Standard: With bottom light Optional: Stand without bottom light, boom arm stand. Φ95mm black and white board.
Camera adapter	1X C-mount. Optional: 0.5X.
Digital camera	Optional.
