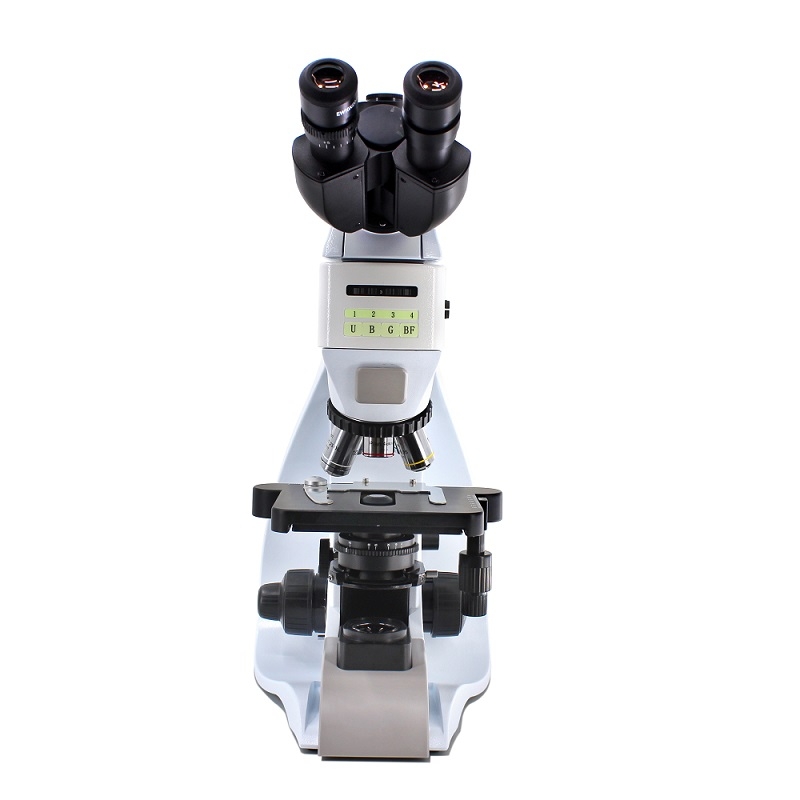

BD-SW35T Biological Microscope
▲ Infinity Plan achromatic optical system.
▲Magnification: 40X-1000X
▲ Bright field, Dark field, Phase contrast, Fluorescence, polarizing.
▲Magnification: 40X-1000X
▲ Bright field, Dark field, Phase contrast, Fluorescence, polarizing.
▲ Binocular/Trinocular.
▲ Wide field WF10 × (Φ20mm), WF16X.
▲ Plan 4X, 10X, 40X, 100X
▲ LED.
Product Detail
※Features:
▲ BD-SW35T has clear imaging, broad vision, can be widely used in biology, medicine, industry, agriculture and other fields.
▲ Infinity Plan achromatic system.
▲ Standard: Bright field. Optional: Dark field, Phase contrast, Fluorescence, Polarizing.
▲ Infinity Plan achromatic system.
▲ Standard: Bright field. Optional: Dark field, Phase contrast, Fluorescence, Polarizing.
▲ View tube: Binocular/Trinocular.
▲ For research lab, education, industrial lab, medical lab.
| Optical system | NIS45 Infinity Plan achromatic system |
| Observation Methods | Standard: Brightfield. Optional: Dark field, phase contrast, polarizing, Fluorescence |
| View tube |
Binocular/Trinocular , 30 ° inclined, 360°rotating
IPD adjustment: 47mm ~ 78mm
Diopter adjustment: ± 5 diopters Splitting ratio: 50: 50. |
| Eyepiece | Wide field PL10 × (Φ20mm) ▲Optional: WF16X |
| Objective | Infinity Plan achromatic objective: 4X/0.1, 10X/0.25, 40X/0.65(spr), 100X(spr.,oil). |
| Nosepiece | Quintuple(5-position). |
| Stage | Double layer Mechnical Stage size:150×140mm. XY Moving range: 76mm ×52mm, with stopper. Moving Precision: 0.1mm. Vernier scale on both axes of movement with an accuracy of 0.1 mm. Double slides clips. |
| Focusing mechanism |
Coaxial coarse and fine focusing system.
Coaxial Coarse 37.7 mm per circle. Focusing stoper for protecting the lens and specimen.
Tension adjustment of coarse regulation knob.
Fine adjustment accuracy :0.002mm.
|
| Illumination |
Transmission Kholer illumination system.
1W LED, intensity adjustable.
|
| Condenser | NA1.25 Abbe condenser, with aperture iris diaphragm. ▲Optional: Dark field conderser. |
| Camera adapter | 0.5X or 1X C-mount. |
| Camera | Optional. |
| Power supply | AC100-240V, 50/60Hz |
