BD-SW1001 biological microscope
▲ Magnification: 40X - 1000X
▲ Tube: Binocular or Trinocular
▲ View Head: 30° inclined, 360° rotating
▲ View Head: 30° inclined, 360° rotating
▲ Eyepiece: WF10X / 18mm
▲ Nosepiece: 4-position
▲ Nosepiece: 4-position
▲ Objective: Plan Achromatic 4X, 10X, 40X, 100X
▲ Illumination: LED lamp 3w
Product Detail
※Features:
▲ Ergonomics designed rigid frame. With handle for carry.
▲ All metal material with cover. Anti-fungi, anti-bacteria.
▲ Competent for research lab, hospital and clinic, school lab.

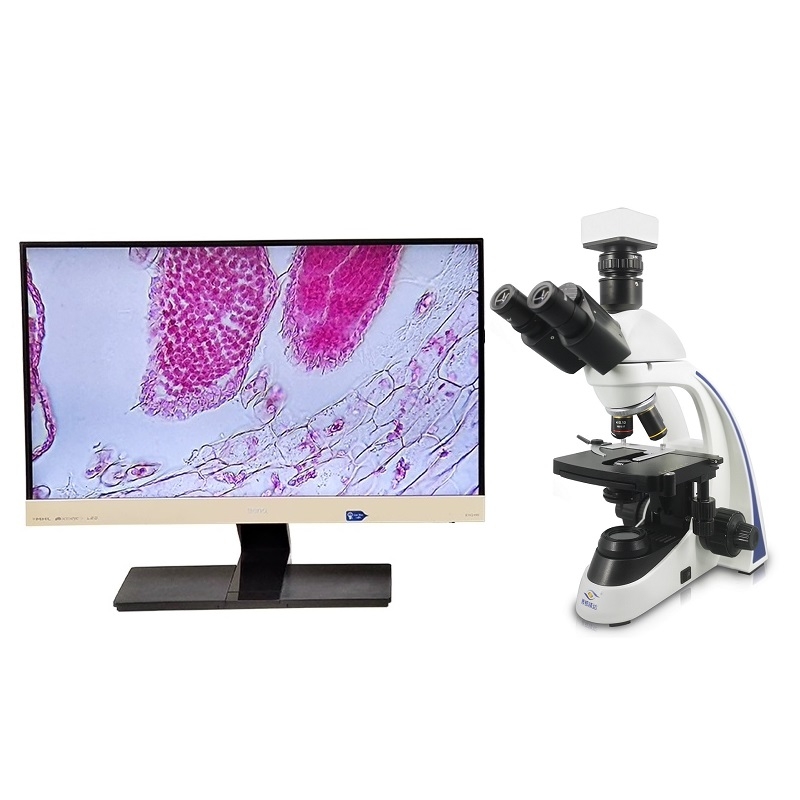

▲ Optional Digital Camera for connect to computer or monitor.
▲ All metal material with cover. Anti-fungi, anti-bacteria.
▲ Competent for research lab, hospital and clinic, school lab.
▲ Optional Digital Camera for connect to computer or monitor.
| Model | BD-SW1001 Biological Microscope | BD-SW1001-Infinity Biological Microscope |
| Optical system | Plan achromatic optical system. | Infinity Plan achromatic optical system. |
| Observation method | Bright field Optional: Dark field |
Bright field. Optional: Dark field |
| View tube | Binocular/Trinocular head, 30 ° incling, 360°rotating. Diopter adjustment: ± 5 diopters Adjustment of interpupillary distance 50-75mm. |
Binocular/Trinocular head, 30 ° incling, 360°rotating. Diopter adjustment: ± 5 diopters Adjustment of interpupillary distance 50-75mm(Optional: 48-75mm). |
| Eyepiece | Wide field WF10X / 18 . Optional 16X. |
Wide field WF10X / 18 . Optional: WF10X/20mm. Optional 16X. |
| Objective | Plan Achromatic objective: 4X/0.10, 10X/0.25, 40X/0.65(Spring loaded), 100X/1.25(Spring loaded and oil immersion). | Infinity Plan Achromatic objective: 4X/0.10, 10X/0.25, 40X/0.65(Spring loaded), 100X/1.25(Spring loaded and oil immersion). |
| Nosepiece | Quadruple reversed angle nosepiece, rotation on ball bearings. | Quadruple reversed angle nosepiece, rotation on ball bearings. |
| Illumination | White LED lamp illuminator. LED power: 3W. | White LED lamp illuminator. LED power: 3W. |
| Focusing mechanism | Coaxial coarse and fine focusing system. Tension adjustment of coarse regulation knob. Upper pper limit stoper for protecting the lens and sample. |
Coaxial coarse and fine focusing system. Tension adjustment of coarse regulation knob. Upper pper limit stoper for protecting the lens and sample. Focus stroke: 28mm. |
| Stage | Mechanical double layer stage, platinum with overhang, dimensions 155x145 mm. Moving range: 76mm ×52mm. Vernier scale with an accuracy of 0.1mm. |
Mechanical double layer stage, platinum with overhang, dimensions 155x145 mm. Moving range: 76mm ×52mm. Vernier scale with an accuracy of 0.1mm. |
| Condenser | Removable Abbe condenser, NA1.25 with aperture iris diaphragm. | Removable Abbe condenser, NA1.25 with aperture iris diaphragm. |
| Camera | Optional | Optional |
| Power supply | AC100-240V, 50/60Hz. | AC100-240V, 50/60Hz. |
