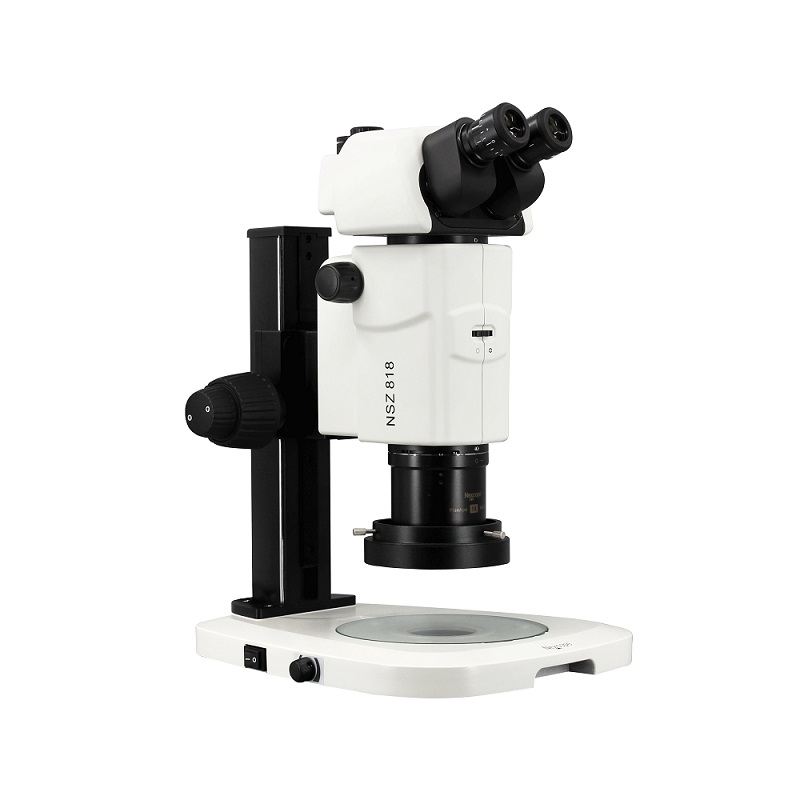

NSZ-818 Parallel light stereo Microscope
▲ Magnification: 7.5 -135X
▲ Lens: 0.75-13.5X
▲ AOP objective: 1X
▲ Zoom ratio: 18:1
▲ Eyepiece: 10X/23mm
▲ View head: Trinocular
产品描述
NSZ-818 Parallel light stereo Microscope
※Features:
※Features:
▲ Plan-apo lens for outstanding imaging quality. The powerful microscope includes a high-performance plan-apochromatic lens with a large working distance of 60 mm, which produces images free from chromatic aberration, even at the highest magnification levels.
▲ The contrast and depth of field can be adjusted to your objective via the adjustable diaphragm.
▲ 10x wide-field eyepieces have a large 23 mm field of view and are suitable for people who wear glasses. Dioptre adjustment can be adjusted on both sides.
▲Ergonomic stand with precision adjustment mechanism.
The heavy metal stand with a glass inlay features a bright, homogeneous LED transmitted-light illuminator as standard. A diaphragm can be inserted into the base for additional contrast.
▲The focusing system consists of a coaxial coarse and fine focusing knob for sensitive focusing, even at high magnifications. The flat base allows you to work ergonomically and safely with a wide range of culture vessels.
▲ For more application information, please contact us.
※Specifications:
| Optical system | Parallel light optical system. |
| Zoom ratio | 18:1 |
| Lens zoom range | 0.75X-13.5X |
| Magnification | 7.5X-135X(1X APO Lens) |
| View head | Trinocular Tilting Tube, Eyepiece inclination:30° IPD adjustment: 47~78mm. |
| Eyepiece | WF10× (Φ23mm) , diopter adjustable. |
| Objective | APO objective 1X |
| Working distance | 60mm with APO objective 1X. |
| View Field | 31.4mm with APO objective 1X. |
| Illumination | OCC transmitted illumination system: LED lamp With DN4 filter, DN16 filter, daylight filters. Reflected illumination: LED lamp. |
| Focusing system | Coxial coarse and fine focusing system. |
