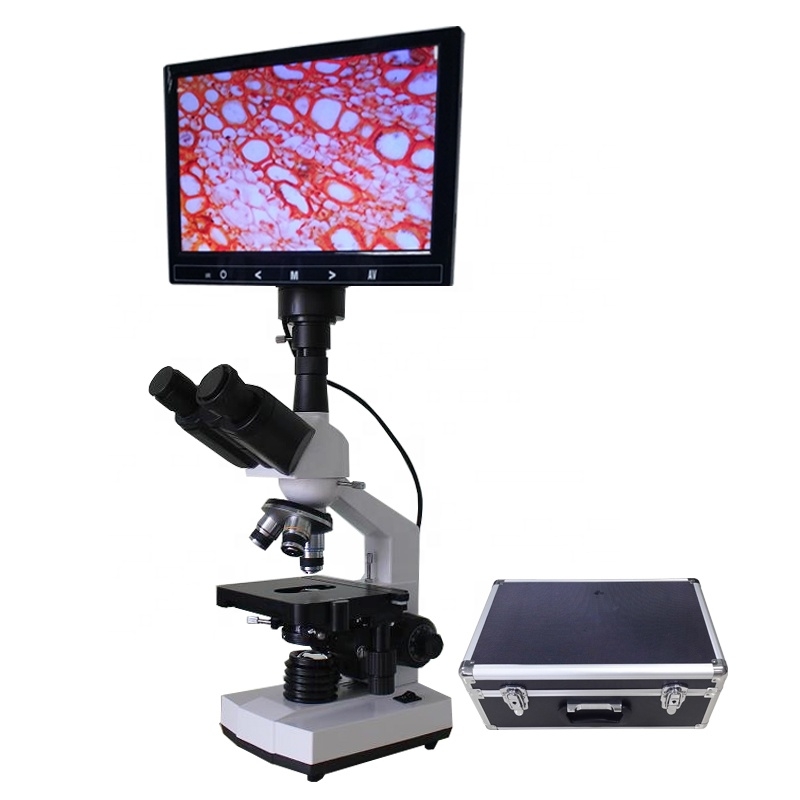

BD-YDX2001 Biological Microscope
▲ Magnification: 40X - 400X
▲ Tube: Monocular/Trinocular with LCD monitor
▲ Eyepiece: WF10X / 18mm
▲ Objective: 4X, 10X, 40X
▲ Illumination: 1w LED, brightness adjustable
▲ Package: Portable case
▲ Cetificate: CE, Rohs
Product Detail
※Features:
▲ BD-YDX2001 is a living blood cell analysis biological microscope with display screen.
▲ It is also fit for dead blood cell.
▲ It is a small size microscope and easy to move with a portable case.
▲ For more application information, please contact us.
| Model | BD-YDX2001 | BD-YDX2002 |
| Magnification | 40X-400X | 40-400X |
| View tuve | Monocular, 30° inclined, 360° rotated. With LCD monitor and built-in camera. |
Trinocular, 30° inclined, 360°rotated. With LCD monitor and built-in camera. |
| LCD monitor | 9 inch HD LCD monitor. | 9 inch HD LCD monitor |
| Eyepiece | WF10X/18mm. |
WF10X/18mm. |
| Objective | Plan Achromatic 4X, 10X, 40X. Optional: 100X. |
Plan Achromatic 4X, 10X, 40X. Optional: 100X |
| Nosepiece | Three-position. | Three-position. |
| Stage | Stage size 110mm*120mm. X-Y Move range: 60mm*30mm. With double clips. |
Stage size 110mm*120mm. X-Y Move range: 60mm*30mm. With double clips. |
| Focusing | Coaxial coarse and fine focusing system. Knobs on both sides. |
Coaxial coarse and fine focusing system. Knobs on both sides. |
| Illumination | 1W LED, brightness adjustable. | 1W LED, brightness adjustable. |
| Package | Portable case. | Portable case |
