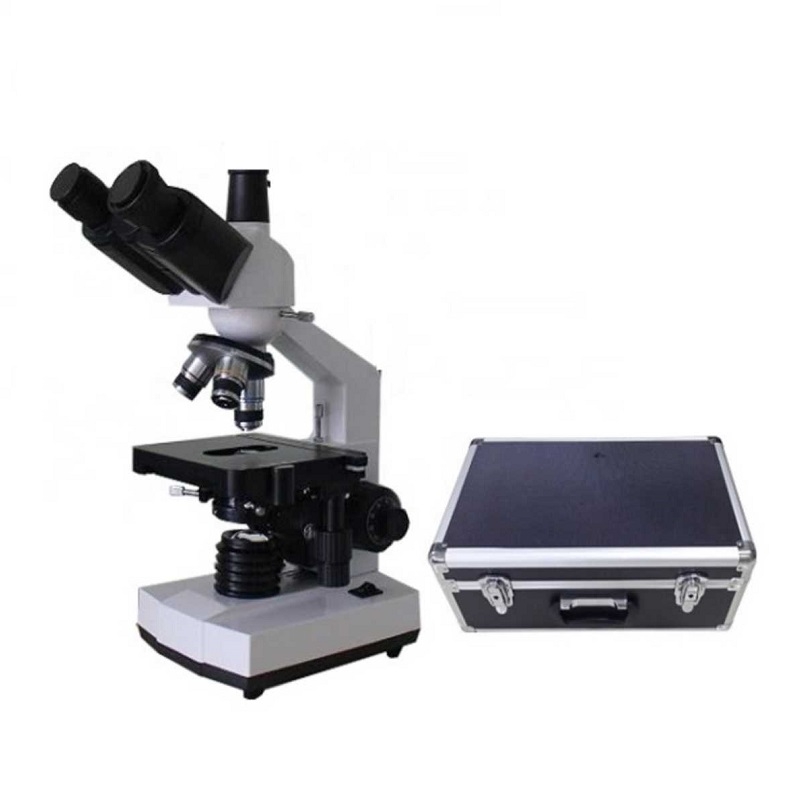

BD-SW30 Biological Microscope
▲ Magnification: 40X - 1000X
▲ Tube: Trinocular/Binocular
▲ Eyepiece: WF10X / 18mm
▲ Objective:  4X, 10X, 40X, 100X
▲ Illumination: 1w LED, brightness adjustable
▲ Package: Portable case
▲ Cetificate: CE
Product Detail
※Features:

▲ Magnification: 40x to 1000x, with the ability to change magnification levels through interchangeable objective lenses and adjustable eyepieces.
▲ All optics anti-fungus treated. Anti-fungus / anti molds treatment for 3-5 years.
▲ The optical/lens are tolerated by Anisole emulsion used for microscopy.
▲ Eye pieces and objectives: Achromatic Plan emphasized on Chromatic aberration.
▲ 40X and 100X objectives are Spring loaded to prevent breakage/damage to the slide.
▲ With provision of mirror to replace the AC light source.

Magnification 40X-1000X
Objective Achromatic objective( (anti-fungus)):
4X/0.1, 10X/0.25, 40X/0.65 (Spr.), 100X/1.25(Spr., Oil)
Nosepiece Quadruple revolving nosepiece, rotation on ball bearings.
View tube 30-degree inclination observation tube with adjustable inter-pupillary distance.
Diopter adjustable.
Eyepeice Pair of eyepiece (anti-Fungus): WF10X/18mm.
Illumination LED cold light, 1w(corresponds to about 20 W halogen brightness.), brightness adjustable.
Detachable plano-concave mirror unit.
Stage Mechanical stage with graduated slide holder, iris diaphragm with filter, filter holder, course and fine adjustment.
Stage size: 110mm*120mm, XY move range 60mm*30mm.
With XY scale and clips.
Focusing

Coaxial coarse and fine focusing.

Movement by roller guider(Roller and pinion).

Rubber grip around fine and coarse adjust knob.
Condenser Abbe Condenser with iris diaphragm aperture, 1.25 NA.
Power supply AC100-240V, 50/60Hz(universal adaptor with voltage surge protection). Power plug with tandem plug.
Accessories(Optional)

2 pieces of spare bulb, dust cover, carry case.
Immersion oil one bottle/10ml,
Blue/Green/white filter,  Cleaning kits.
Manual in English language:operation Manual,service manual.
